Mile High RC's Outrunner Brushless Motors



.: We are looking for some flight Video!!

For those of you who video your flights. We have many motors that do not have user submitted video yet. Should you be interested in such a motor we are happy to offer 100% buy back with the submission of your video. If you question if the motor you are interested in qualifies for the buy back program feel free to drop us a line. Check out the 2835-8, 3536-6, 5055-6, 5055-8, 6362-8, 6362-10 - All Qualify.



.: We are looking for a motor tester!!

For those of you who have an adequate test stand we would love to get some 3rd party and lower elevation test stand numbers. Info should be at least the data we capture from our testing. Will be done on a buy back basis like the video buy back program. Buy it - Give us comprehensive data - We refund.



If you have a specific question about application or would like a second opinion feel free to drop us a line. sales@milehighrc.com



.: The name/numbers

Our outrunners are named by motor size rounded up to the nearest millimeter. So a 2822 is 28mm in diameter and 22mm in length (plus the shaft). When doing a direct comparison by the numbers alone make sure you motor is named by size, or have the size handy for comparison. For example the 2822 series is a great replacement for the some of the 2212 outrunners on the market.



We have a great line of outrunner motors, covering small foam birds through large scale gas conversions. The current motor selection is from 80 watts up to 2500 Watts. Again our motors are very competitively priced, designed to compete with the guys over seas in price but perform like a motor in a higher price range, and of course are guaranteed to be from defects. The data you see is from our personal test stand and are real and accurate numbers.


2822-27 : 1360KV Outrunner 100 Watts Max

Run this motor on the smaller birds. Great motor for the 7oz. to 12oz. planes.

Suggest 80 Watt set ups for best most efficient performance. Try a 2 or 3 cell lipo with an 8 to 12 Amp ESC



Click here to purchase, see test data, and flight video






2822-24 : 1400KV Outrunner 175Watts Max

300 Equivalent, great motor for smaller birds. Run a small 3-cell with 7" and 8" props.

Motor qualifies for video buy back program.



Click here to purchase, see test data, and flight video










2826-17 : 1000KV Outrunner 125 Watts (240 Watts Burst)

370 Equivalent, great motor for smaller parkflyers. Run a small 3-cell with 9" and 10" props.



Motor qualifies for video buy back program.



Click here to purchase, see test data, and flight video

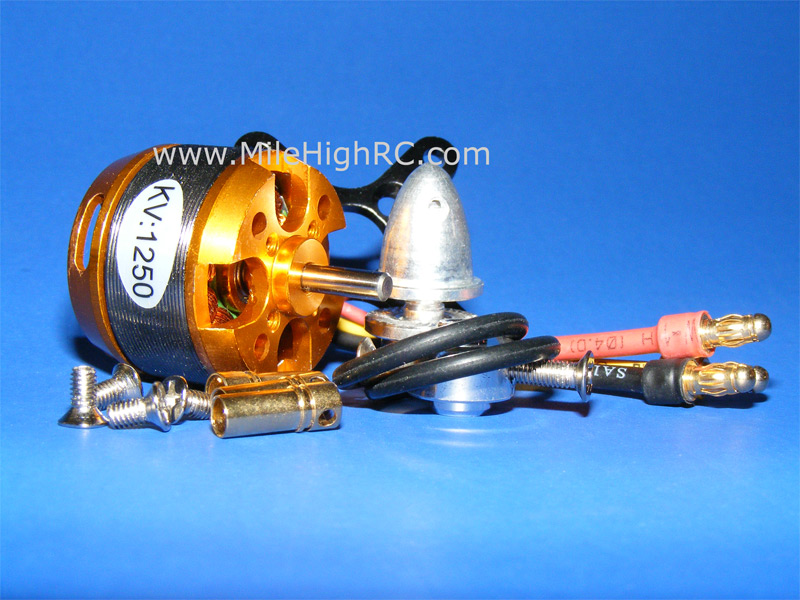

2826-14 : 1250KV Outrunner 150 Watts Max

Motor is factory rated at 150 Watts but we run it at 180 watts without issue to date. The motor should be used for general flight on birds to 30 ounces and 3D flight on birds in the 12oz. to 17 oz. range. Run a small 3-cell with an 18 Amp ESC. Comparable to 2212 outrunners when names by stator size.





Click here to purchase, see test data, and flight video






2830-14 : 850KV Outrunner 280 Watts Max

Use 2-3 cell lipos with 18-25 Amp ESC. Prop range 9x6 through 11x5.5



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.

We will also reimburse you the cost of the motor with user submitted video.



Click here to purchase and see test data






2835-8 200 Watt Outrunner

2835-8 : 1038KV Outrunner 200 Watts Max



Motor is factory rated at 200 Watts. APC E prop of 10x7 on 3-cell is suggested.

Awesome on 3-cell 850-1100mah for the foamies to 20 ounces.

We will buy back this motor 100% for the first few people who can provide some flight video.





Click here to purchase and see test data

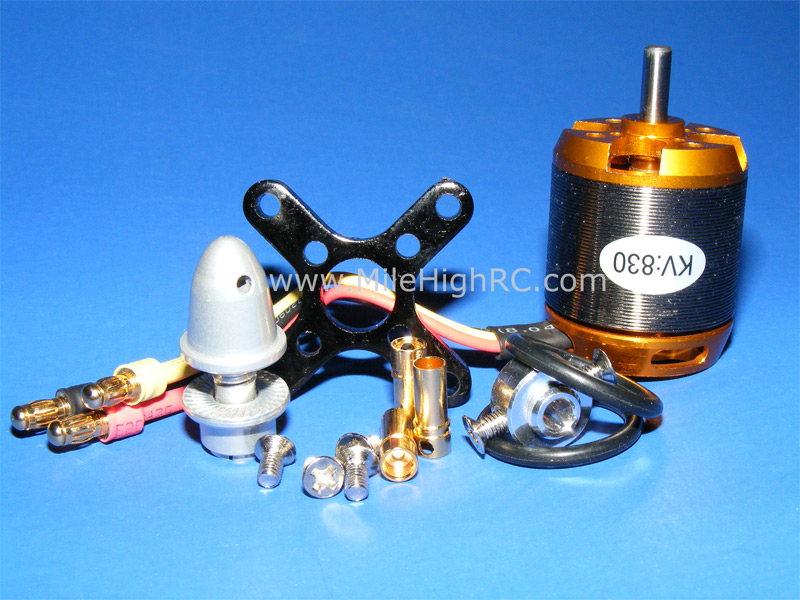

2835-10 : 830KV Outrunner 220 Watts Max

Motor is factory rated at 220 Watts. Other then some test stand runs we have not flown this one yet. Data suggest 11 and 12 inch props on 3-cell, with 11x4.7SF or 11x7 E most likely the sweet spot. We would really like to experiment with this on a small wing with a  small prop and a small 4-cell. Sounds crazy but would be interesting for sure.



Motor qualifies for video buy back program.



Click here to purchase and see test data




2836-7 : 1120KV Outrunner 310 Watts

450 Equivalent, great motor for 9" - 11x5.5 pops on birds to 40 ounces. .

Motor qualifies for video buy back program.



Click here to purchase, see test data, and flight video








3530/13 : 1100KV Outrunner 345 Watts

450~480 Equivalent, Use 2-3 cell lipos with 30-40 Amp ESC. Prop range 9x6 through 10x4.7



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.

We will also reimburse you the cost of the motor with user submitted video.





Click here to purchase, see test data, and flight video




3536/7 : 1100KV Outrunner 480 Watts

Use 2-4 cell lipos with 30-40 Amp ESC. Prop range 9x6 through 11x5.5



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.

We will also reimburse you the cost of the motor with user submitted video.





Click here to purchase, see test data, and flight video


3542/5 : 1000KV Outrunner up to 600 Watts

Use 2-4 cell lipos with 40-50 Amp ESC. Prop range 10x6 through 13x8



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.



Click here to purchase, see test data, and flight video






3542-6 ~ 40 Amps / 45 Amps Burst ~ 920 KV ~ 4.3oz (135g) ~ 450Watts

Nice 400 Watt power house on a good 3-cell (2200mah 20C or 25C)  and Xoar 13x6.5 prop.



Click here to purchase, see test data, and flight video






3548/5 : 790KV Outrunner up to 850 Watts

Use 2-4 cell lipos with 30-60 Amp ESC. Prop range 12x7 through 14x7



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.

We will also reimburse you the cost of the motor with user submitted video.





Click here to purchase, see test data, and flight video




3548-5 ~ 38 Amps/45 Amps Peak ~ 890KV ~ 5.7oz. (170g) ~ 450 Watts / 600 Watts Peak



Motor is almost impossible to over amp on 3-cell. It gives awesome power on 4-cell with a 13x6.5 Xoar prop or APC 12x6 E.





Click here to purchase, see test data, and flight video






 4240-7 850KV - 720 Watts - 3-7 cell lipos



.25 size Outrunner motor. Motor is rate at 720 Watts, use this motor on 3D birds to 3.5 pounds or general flight on birds in the 7 pound range.



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.

We will also reimburse you the cost of the motor with user submitted video.



Click here to purchase, see test data, and flight video


 4240-10 890KV - 590 Watts - 3-7 cell lipos



Motor is rate at 590 Watts MAX, 3D birds in the 3 pound range or general flight on birds up to 5-6 pounds.



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.

We will also reimburse you the cost of the motor with user submitted video.



Click here to purchase, see test data, and flight video




4250-7, Power 32 Replacement

4250-7 ~ 45 Const./57 Burst Amps ~ 710 KV ~ 6.88oz (195G) ~ 900Watts



Probably our favorite motor of the entire line up. Rut it with 4-cell lipo capable of 40 to 60 Amps and a 14x7 through 16x8 prop on a 5 pound plane and have some fun!!! Replacement for a power 32 but 1/2 the price. Comes as show





Click here to purchase, see test data, and flight video






 4260-6 500KV - 1350 Watts - 3-7 cell lipos



Motor is rate at 1350 Watts MAX, 3D birds in the 6 - 7.5 pound range or general flight on birds up to 13 pounds.



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.

We will also reimburse you the cost of the motor with user submitted video.



Click here to purchase, see test data, and flight video




6362-08 2450 Watt Outrunner

 5055-8 400KV - 1375 Watts - 3-8 cell lipos



.50 size Outrunner motor. Motor is rate at 1375 Watts, use this motor on 3D birds from 7-9 pounds or general flight on birds in the 11-13 pound range.



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.





Click here to purchase, see test data, and flight video


6362-08 2450 Watt Outrunner

 5055-4 700KV - 1560 Watts - 3-8 cell lipos



.50 size Outrunner motor. Motor is rate at 1560 Watts, use this motor on 3D birds from 7-9 pounds or general flight on birds in the 14-16 pound range.



Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.





Click here to purchase, see test data, and flight video




5065-7 320KV - 1600 Watts - 3-8 cell lipos



Motor is rate at 1600 Watts with bursts of 2100 watts. Effective use with 5 or 6 cell lipos props up to 18 x 8.





Get thrust data on your test stand before we do and we will pay you back for the cost of this motor.

We will also reimburse you the cost of the motor with user submitted video.



Click here to purchase, see test data, and flight video




Motors Below are out of stock and may end up being discontinued.

Pages are up for informational purposes for past customers.





2826-14 : 1250KV Outrunner 150 Watts Max

Motor is factory rated at 150 Watts but we run it at 180 watts without issue to date. The motor should be used for general flight on birds to 30 ounces and 3D flight on birds in the 12oz. to 17 oz. range. Run a small 3-cell with an 18 Amp ESC. Comparable to 2212 outrunners when names by stator size.



Click here to purchase, see test data, and flight video


2826-9 : 1820KV Outrunner 15 Watts Max

Factory suggests 9x4.7 prop on 2-cell for 15 amps. This motor is still in testing. Look to the product page for further factory info and out stats.



Click here to purchase, see test data, and flight video








2830-12 : 980KV Outrunner 200 Watts Max

Motor is factory rated at 200 Watts but it can takes bursts to 250 watts without issue. Typical use with 10 and 11 inch props will put you in the 16 watt to 180 watt range. The motor is a great choice when used for general flight on birds to 32 ounces and 3D flight on birds to 20 ounces, and propped 1800 watts.



Click here to purchase and see test data


2830-9 : 1290KV Outrunner 200 Watts Max

The factory rates this motor at 18 Amps max and suggests a constant current of 16 amps and offers recommendations of a 9x5 prop.









Click here to purchase and see test data


2835-8 200 Watt Outrunner

2835-8 : 1038KV Outrunner 200 Watts Max



Motor is factory rated at 200 Watts. APC E prop of 10x7 on 3-cell is suggested.



We will buy back this motor 100% for the first few people who can provide some flight video.

Click here to purchase and see test data


2835-4 Outrunner

2835-4 : 1880KV Outrunner 28 Amps Max



Motor is factory rated at 28 Amps Constant with suggested constant amp draw of 23 Amps.



We will buy back this motor 100% for the first few people who can provide some flight video.

Click here to purchase and see test data

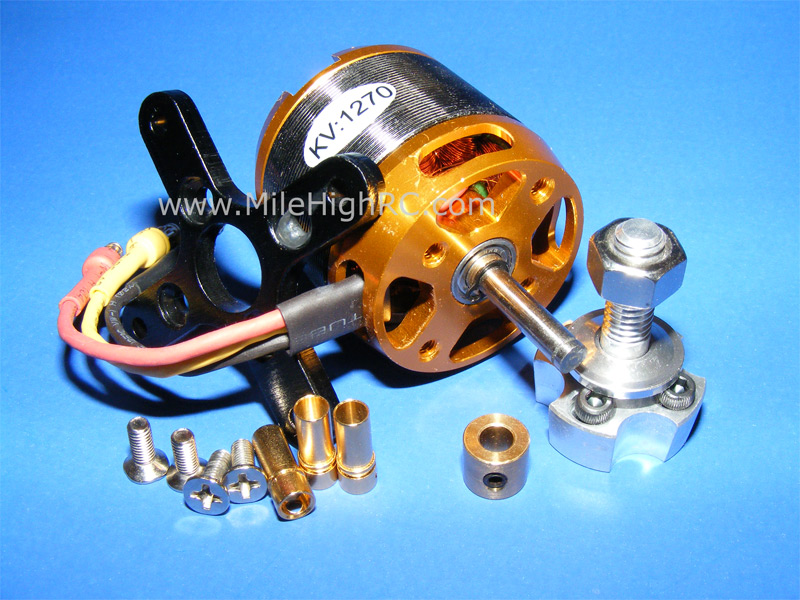

3536-6 ~ 38 Amps ~ 1270 KV ~ 3.3oz (95g)

Motor is rate at 350 Watts with a suggested max draw of 38 Amps with 48 Amps burst. Although the factory suggests a 11x7 prop this is a pretty fast motor and will require high C value packs if running an 11x7 on 3-cell.



Also testing a 1520Kv version



Click here to purchase and see test data






5055-6  ~ 58 Amps ~ 720 KV ~ 9.52oz (270G) ~ 1500 watts ~ 4-6 Cells Lipo

Factory claims 150 oz. (9Lbs.) of thrust with a 15x6 prop at 56 amps.

Although we have ran this motor we have not ran it any higher then 800 watts. Currently setting up a 1000 Watt set up. More info an impressions to come.

Factory Info: 720KV - Io 2.4 - 11-16 NiCd/Mh 3-5 Cell Lipo - Suggested prop 15x6














All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
