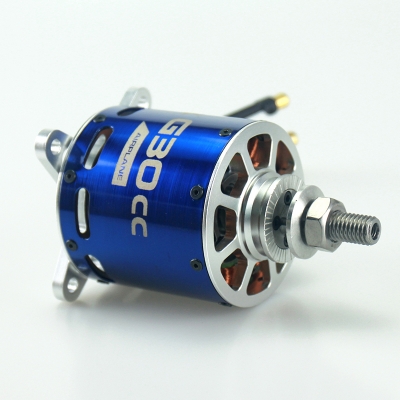

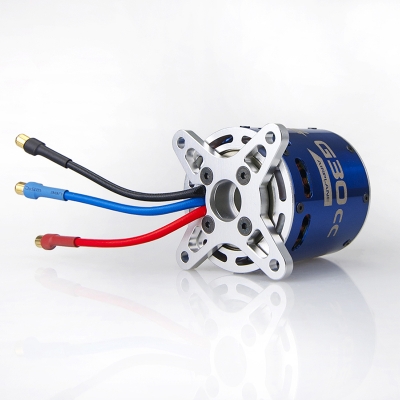

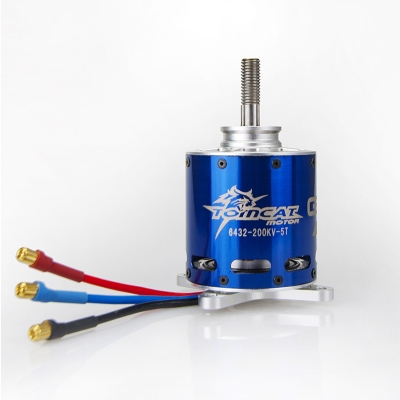

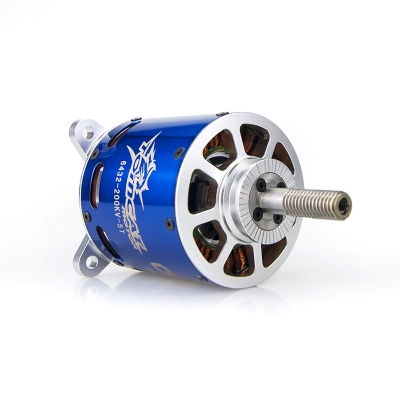

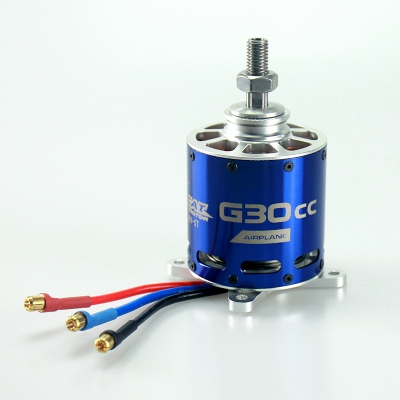

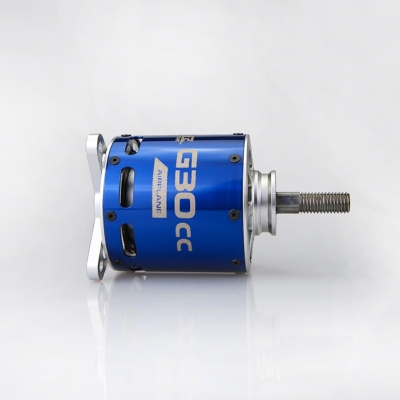

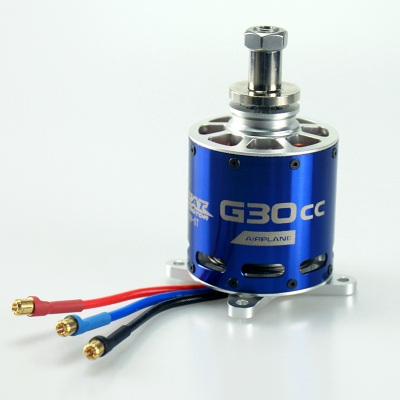

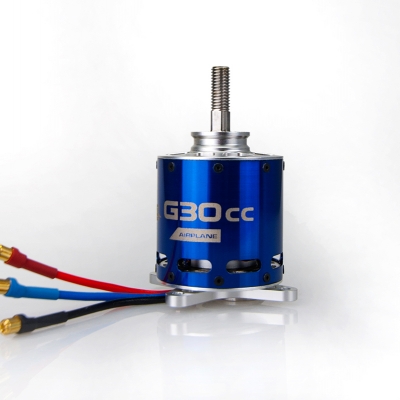

Tom Cat G30cc 6432-200KV Outrunner Brushless Motor

30CC Brushless30cc OutrunnerTomCat 30cc Outrunner

Motor is a designed to power 30cc size planes. Run this motor on 10 cell lipos and match it with an ESC of 100 Amp or more. Motor is rate up to 3000 Watts, with a suggested max amp draw of 65 Amps (80 Amps Burst).

G30cc 6432-200KV-5T 10 Cell Lipo

Weight: 24.05 oz (680g)    64mm Diameter    Shaft: 10mm



Outrunner





Tom Cat G30cc 6432-200KV -$204.00












Type TC-G30cc-6432-KV200 (G30cc)
KV(rpms per volt): 200
No load current:   2.2A @10V
Resistance: 0.04 ohms
Watts: up to 3000
Continuous Current: 65A
Max Burst Current: 80A,10seconds
Cells: 10S Li-Po
Recommended Props: 20x12 to 22x11
Slots,Poles: 20,20

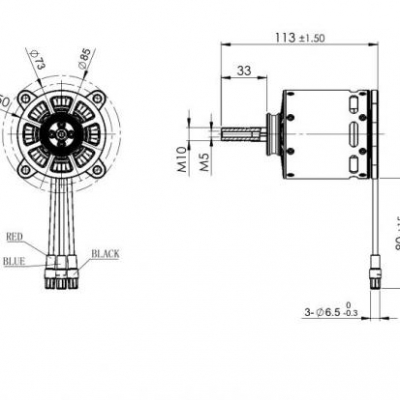

Diameter:  64 mm
Diameter of Shaft:  10 mm
Weight: 682 g
Brushless ESC: 100A





All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
