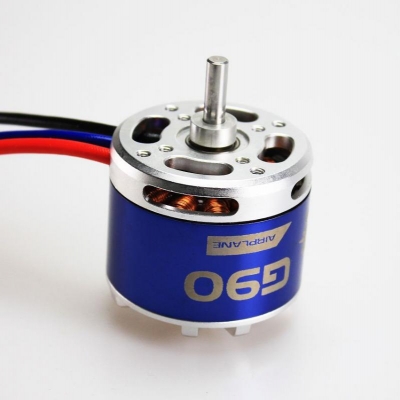

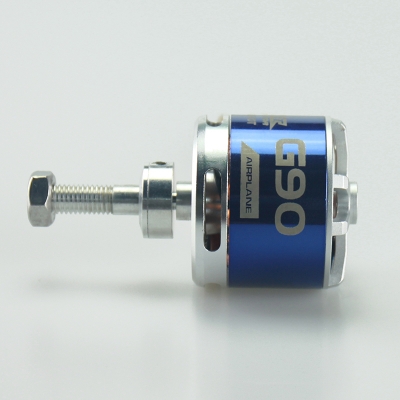

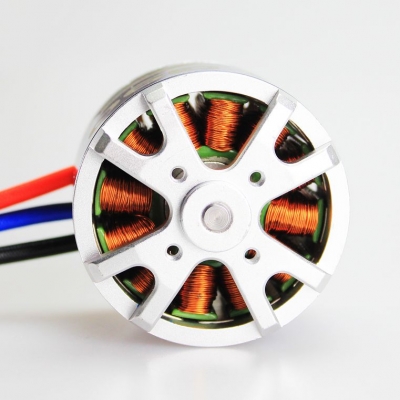

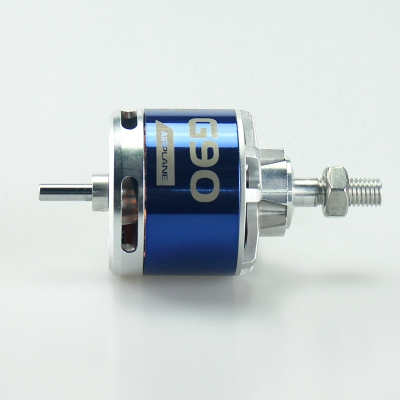

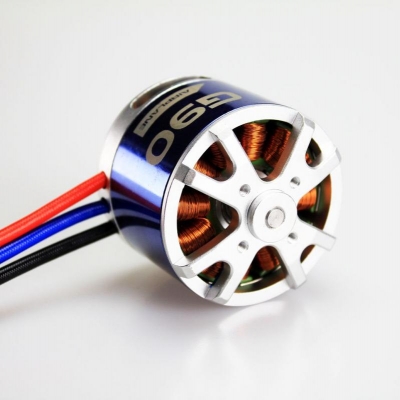

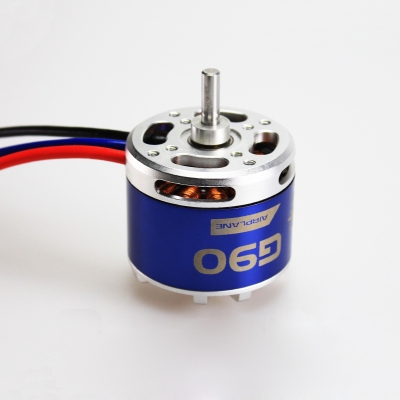

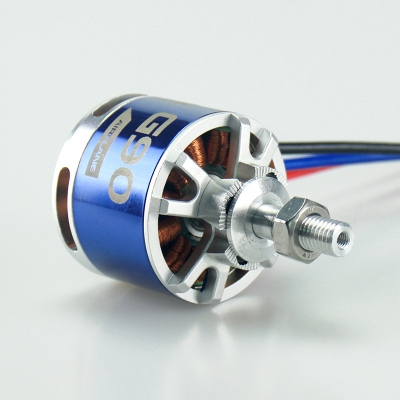

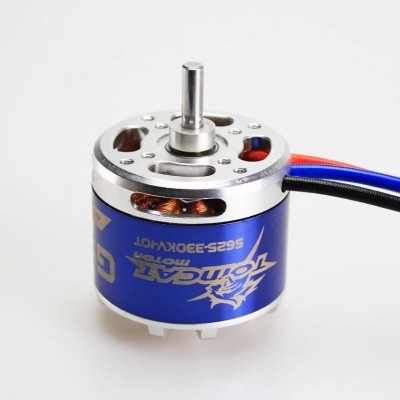

Tom Cat G90 5625-330KV Outrunner Brushless Motor



Motor is a designed to power 90 size planes. Run this motor on 6-8 cell lipos and match it with an ESC of 80 Amp or more. Motor is rate up to 1800 Watts, with a suggested max amp draw of 50 Amps (67 Amps Burst).

G90 5625-330KV-10T 6-8 Cell Lipo

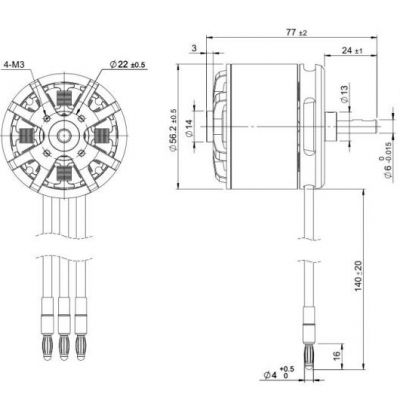

Weight: 15.17 oz (430g)    56.2mm Diameter    Shaft: 6mm













Tom Cat G90 5625-330KV -$71.00













Type TC-G90-5625-KV330 (G90)
KV(rpms per volt): 330
No load current:   1.8A @10V
Resistance: 0.038 ohms
Watts: up to 1800
Continuous Current: 50A
Max Burst Current: 67A,10seconds
Cells: 6-8S Li-Po
Recommended Props: 16x8 to 18x8
Slots,Poles: 12,14
Diameter:  56.2 mm
Diameter of Shaft:  6 mm
Weight: 430 g
Brushless ESC: 80A





All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
