Dollar for
Dollar the best High rate Lithium Polymer (lipo)
batteries we could find.
We are transitioning away
from making packs in-house. Over the last 18 months the factory
who makes our cells has upgraded the equipment in
whole. The result is they now have the ability to match
cells far, far, far better then we ever could. We still
graph cells from each batch to assure proper rating. And
we still fly random sample packs to assure all packs
remain a quality product. With the factory upgrade they
also have released a new quality cell. Check out the
size and weight of our packs, compare them to others on
the market and you will be very impressed. We have also
been able to keep almost the same price point. This
simply assures your are getting value for your dollar.
As with all of our
products, our packs do carry a warranty. If they
do not perform as stated please take advantage of this.
Don't see what
you need? Drop a line we custom make packs and have many
off-site products.
All items shipped the next business
day (Saturday till 10AM included)
Wiring diagram for our standard
(Align/JST-XH) balance connector can be found
here
Why
do we test our cells/packs? Here is
a prime example of why. This cell was pitched as 15C
with a 20C burst. The graph reflects the manufactures
willingness to over state the cells capability. I find
this is common place in the market.
See it here. Granted it is a gross overstatement,
but it is not the worst I have seen. Visit any of the RC
forums on the web and you can find pages and pages of
inaccurate lipo ratings.
Please
balance charge your packs. It is well documented and
proven that balance charging adds life a pack and can
increase performance. We are such believers in balance
charging we brought on a few affordable balance chargers
here
Rated at 25C (20 Amps) constant. With a
30C (24
Amps) burst rate.
Nice size:
3" Long, 1" wide, 5/8" Thick
(74mm x 25mm x 18mm)
Weight: 2.2 oz. (62g) Plus Connector
20g Silicone wire
General Discharge graph can found
here. For you Tech guys Max impedance at 1khz
is 60mΩ. After 15 cycles on our test pack voltage is
within .01V and we have not balance charged the pack
yet.
3 Cell Pricing:
$24.00 Free
Priority shipping (No Connector)
$25.00 Free Priority shipping (With
Deans)
1100
Mah 3 cell pack
Rated at 20C
(22 Amps) constant. With a 25C (27.5
Amps) burst rate.
Nice size:
2 5/8" Long, 1 3/16" wide, 7/8" Thick
(68mm x 35mm x 21mm)
Weight: 3.1 oz. (90g) Plus Connector
This is a factory made pack,
factory rated at 20C. Would be an excellent choice for the small EDF's, 2 or 3-cell
for the war birds, and of course excellent power for the
3D birds. For use up to 22 amps constant, and 27.5 amps
for 30 second bursts.
$29.00 Free
Priority shipping (No Connector)
$30.00 Free Priority shipping (With
Deans)
Out of Stock ~ We
will order more if we get some feed back on them.

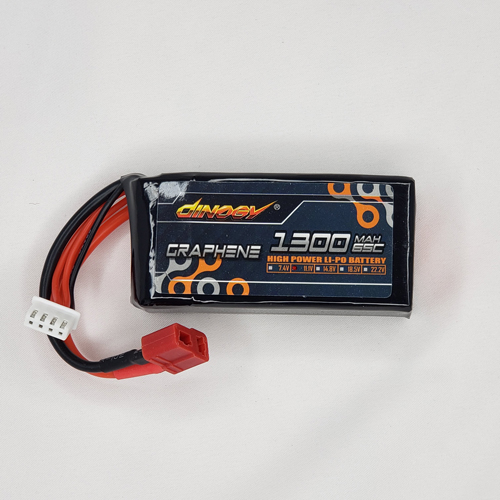

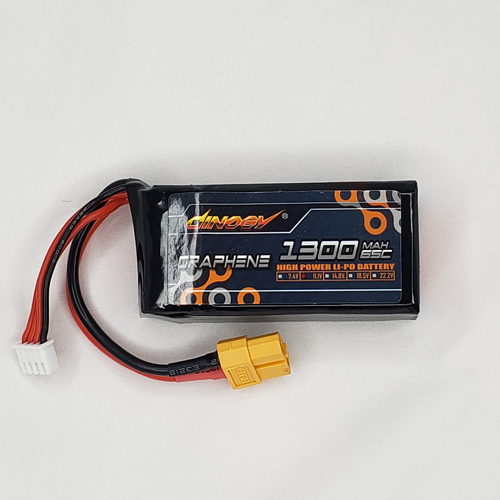

1300 Mah 3 cell pack.
Rated at 20C (26 Amps)
constant. With a 25C (32.5 Amps) burst
rate.
Nice size:
2 7/8" Long, 1 3/8" wide, 3/4" Thick
(73mm x 34mm x 20mm)
Weight: 3.5 oz. (98g) Plus Connector
16g
Silicone wire
General Discharge graph can found
here. For you Tech guys Max impedance
at 1khz is 60mΩ.
We have not flown this pack yet. But a quick
look at the graph shows us we could rate this
pack at 22C or maybe even 25C as the rest of the
industry would.
Rated at 20C (30 Amps)
constant With a 25C (37.5 Amps) burst
rate.
Nice size: 3 3/16" Long, 1 3/8
wide, 1" Thick (86mm x 34mm x 25mm)
Weight: 4.9 oz. (138g) Plus
connector
This is a factory made pack,
factory rated at 20C. Packs are fresh and hand
matched. Would be an excellent choice for the
small EDF's, 2 or 3-cell for the war birds, and
of course excellent power for the 3D birds. For
use up to 30 amps constant, and 37.5 amps for 30
second bursts.
Rated at 25C (55 Amps)
constant. With a 30C (66 Amps) burst rate.
Nice size: 4 3/4" Long, 1
1/2
wide, 7/8" Thick (119mm x 38mm x 23mm)
Weight: 6.4 oz. (182g) Plus
connector
12g
Silicone wire
General Discharge graph can found
here. For you Tech guys Max impedance
at 1khz is 20mΩ. The graph clearly shows another
accurately rated pack. We have flown the heck out
of our test pack in the 3DH Extra SHP and the PA
Katana MD, not to mention about 10 + crashes as we
try to learn to fly the T-Rex. So far our test
pack is performing exceptionally well. I would
guess about 50 flights on it and after the last
use all cells showed exactly the same voltage
prior to charging. Not recommended but we have
even been charging it at a 2C rate.
Rated at 25C (62.5 Amps) constant. With a 30C (75 Amps) burst
rate.
Nice size: 5 1/2" Long, 1
3/4
wide, 5/8" Thick (141mm x 43mm x 15mm)
Weight: 6.8 oz. (195g) Plus
connector
12g
Silicone wire
General Discharge graph can found
here. Sorry we have miss placed the
impedance data. Considering the size and weight of this pack how
could you go wrong? All cells on our test pack have remained the
same voltage or within .05V.
This latest 25C technology is
producing great performance. We have more of
this great pack on order. Drop a line to be put
on the notification list.
Sales@milehighrc.com or
Milehighrc@comcast.net
Rated at 20C (64 Amps)
constant. With a 25C (80 Amps)
burst rate.
Nice size: 5 1/2" Long, 1
3/4
wide, 7/8" Thick (141mm x 43mm x 20mm)
Weight: 9.2 oz. (260g) Plus
connector
12g
Silicone wire
General Discharge
graph can found
here. For you Tech guys Max impedance
at 1khz is 14mΩ (No that is not a typo).
Again the graph clearly shows an accuracy or
slightly under rated cell. We have one flight on
our test pack in the Eratix 25E. The performance
was not far off of the 4-cell set up we usually
run in that bird.
3-Cell Pricing:
$59.00
Free Priority
shipping (No Connector)
$60.00
Free Priority
shipping
(Deans Installed)
We also have a
few
4-cells in stock Drop a line for Purchase
info ($70.00 each)
We also have a
few
5-cells in stock Drop a line for Purchase
info ($84.00 each)
Nice size:
6 1/2" Long, 1 3/4" wide, 7/8" Thick
(167mm x 46mm x 23mm)
Weight: 12.2 oz. (348g) Plus
connector
General Discharge graph can
found
here. For you Tech guys Max impedance
at 1khz is 15mΩ (No that is not a typo). Again
the graph clearly shows an accuracy or even a
little slightly under rated cell. No flights on
our test pack yet but we will update as we have
time to fly.
4200mah 25C 3 Cell Pricing
$78.00
Free Priority
shipping (No Connector)
$79.00
Free Priority
shipping (No Connector)
We also have a
few
4-cells in stock Drop a line for Purchase
info ($99.00 each)
We also have a
few
2-cells in stock Drop a line for Purchase
info ($58.00 each)
Lithium Polymer
batteries were designed for mobile devices and
not for R/C use. Although some manufactures now
see the R/C market as a good viable market. In
general Lithium polymer technology was not
originally intended for high rate use as in R/C
applications. Therefore, the technology of
Lithium Polymer batteries in radio-controlled
models is to be considered experimental (not
just ours all of them). Our cells come from a
factory whom makes cells specifically for R/C
use. But please follow all guidelines and
precautions that are set for lithium polymer
batteries. The R/C hobby is fun, it can be a
daily escape, relaxing, and offer extreme
thrills. The last thing we want is someone to be
injured, or suffer property damage from their
hobby.
We suggest you
follow AMA safety precautions with any Lipo
battery. Since we cannot guarantee customers
will follow the proper safety precautions and
use an appropriate well functioning charger with
the correct settings, therefore, Mile High RC,
it's agents, distributors, employees,
associates, etc.. assume no responsibility for
the use of Lithium Polymer battery products by
our customers. Your purchase and use of this
product means you accept our terms and you
solely
are fully responsible for any consequences of
your use. That being said we do guarantee or
packs to be free from defects of parts and or
faulty workmanship. All cells are matched at the
factory and then matched again by us to assure a
good quality pack. If you have any problems WE
WANT TO KNOW about it!!!
Don't forget to check our
bargain bin. Aside from our personal R/C
stuff we also test fly everything we sell, we
can not possibly keep all of this stuff. Believe
us it piles up fast and we only have so much
warehousing available. So we sale or trade
in the
bargain bin.
We
still make custom packs!! ~~ Dealers we still private
label for you!!
If you need a specific pack don't be
shy drop us a line.
