Ephil 60S Side Exhaust Gas Engine
with Auto Starter System
12
Month Manufactrer Warranty - Serviced right here in the USA.

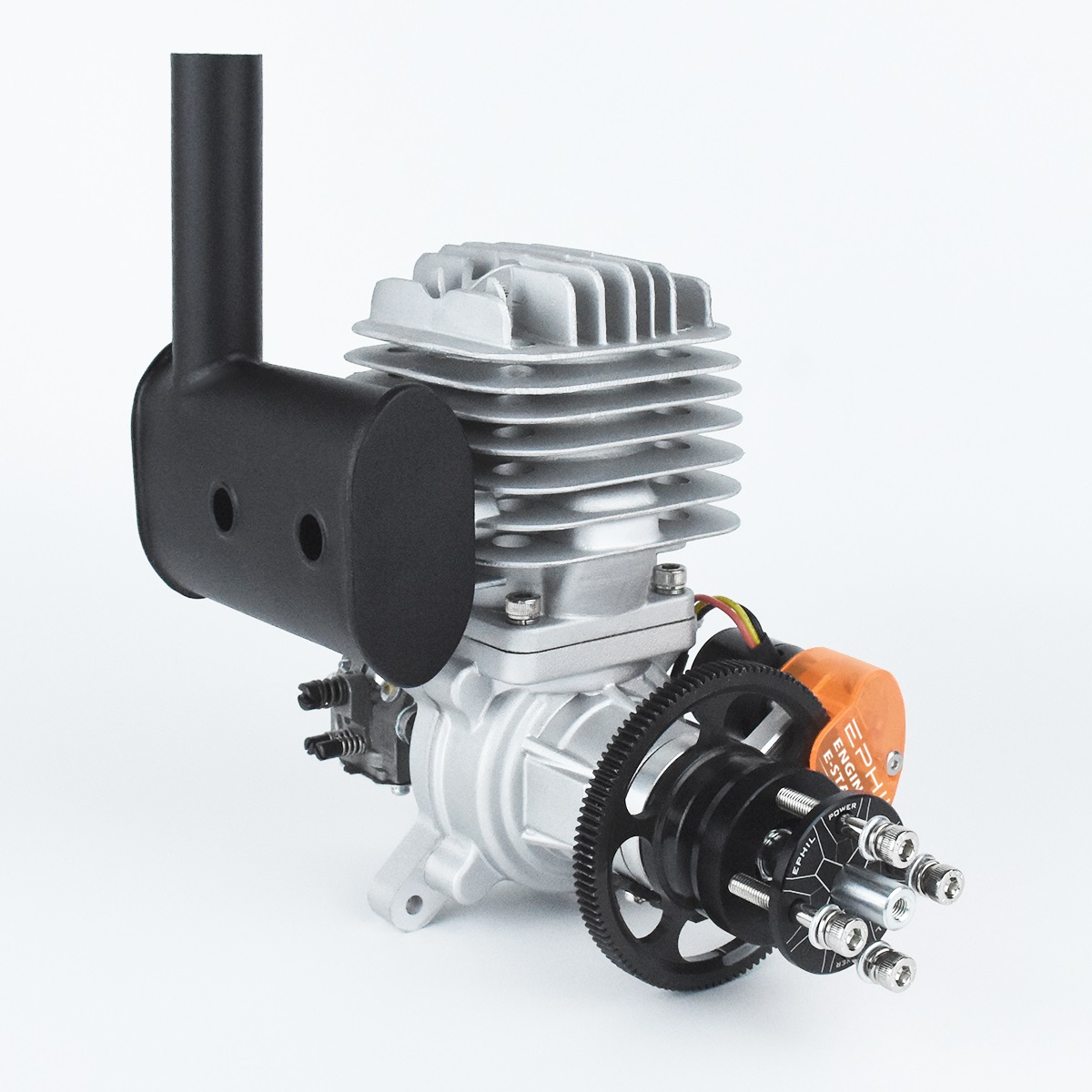

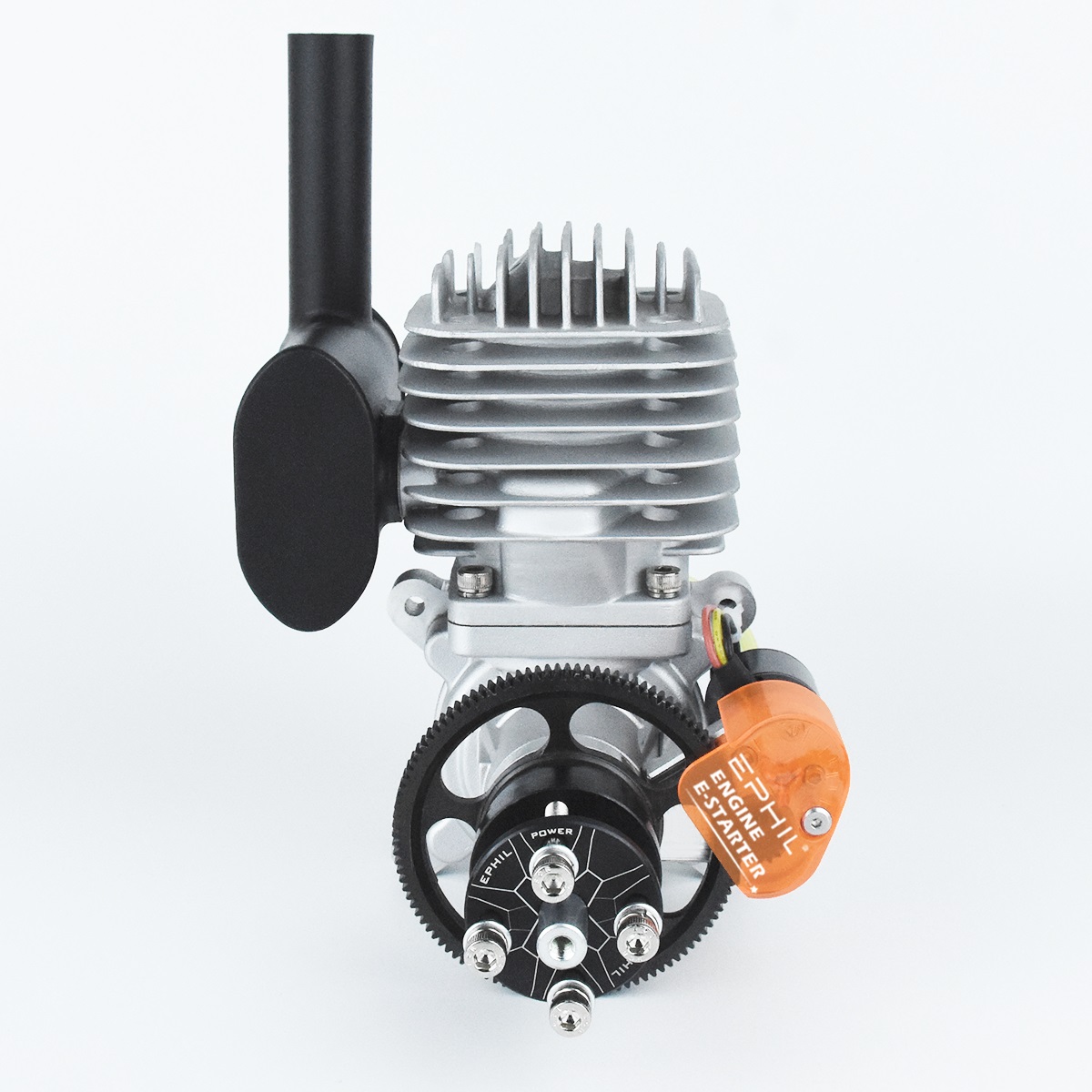

This is a single cylinder side exhaust engine with a displacement of
60cc and includes a brushless auto start system.
The engine body is light and compact with perfect
size to provide users with the best flying experience. It uses
Walbro carburetor and NSK bearings both consiered to be well
established quality parts in the industry.
|
X-60cc-S Pro
Displacement 60cc (3.66 cu in)
Performance 6.2HP
Speed Range 1800-6900 RPM (Test
Propeller-24*9)
Bore 47mm (1.85 in)
Stroke 35mm (1.38 in)
Static Thrust 15.6 kg @ 100 m ALT (21.8 lb @ 328 ft ALT)
Static Thrust 13.6 kg @ 1800 m ALT (18.1 lb @ 5900 ft ALT)
Compression Ratio 8:1
ESC Starter Manual
Here
|
Lubrication Ratio 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition
Voltage 6-14 V
Spark Plug Type CM6 Iridium Spark Plug
Recommended Propeller 22x10; 23x8; 23x10; 24x8; 24x9
Weight
of Main Engine 1656g
Weight of Muffler Set 117g
Weight of
Engine Mount 115g
Weight of Spark Plug 13.5g
Weight of CDI
(Ignition) 104g
Weight of ESC 36g
Total Weight 2005g (4.4
lb) |
Dealers Welcome
Ephil 60cc Side
Exhaust Gas Engine
w/Brushless Starter
System
$579.00
|
