NGH
GF150R5 5 Cylinder 4-Stroke Gas Engine
NGH is famous for producing high-quality gasoline engines, and
is also the first factory in China to independently develop and
produce small multi-cylinder four-stroke gasoline engines.

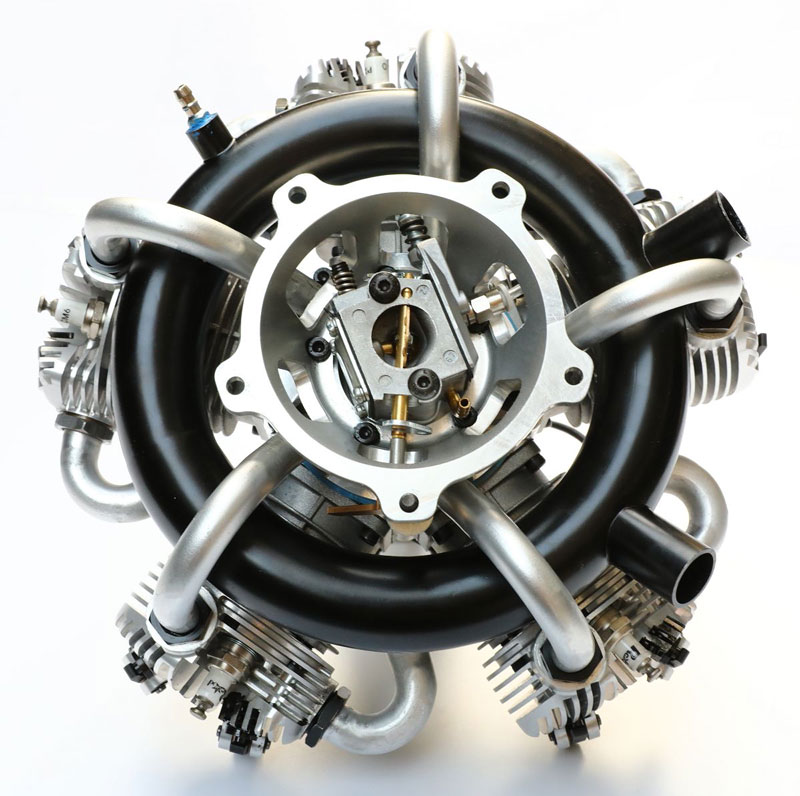

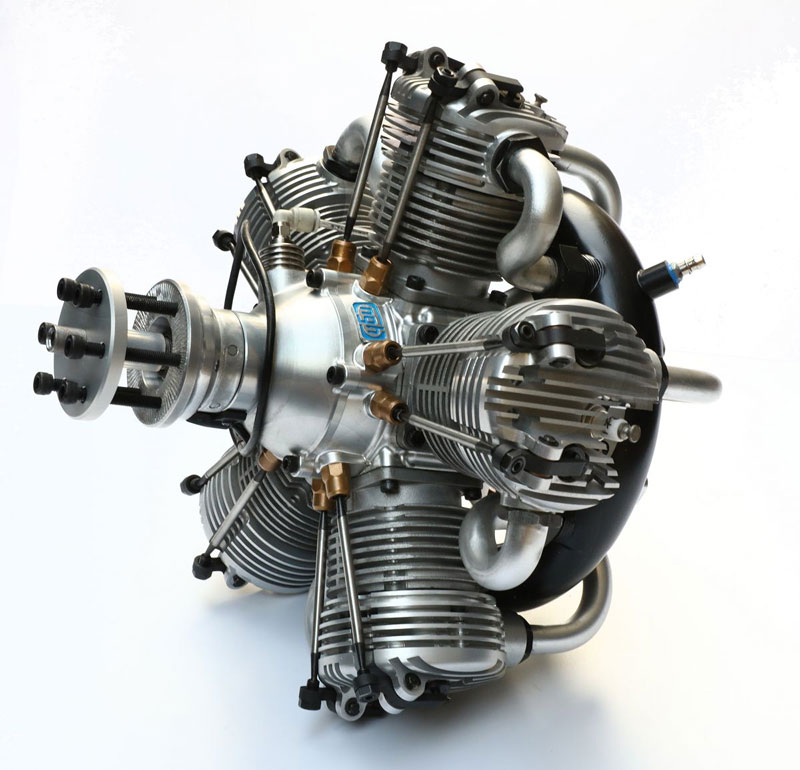

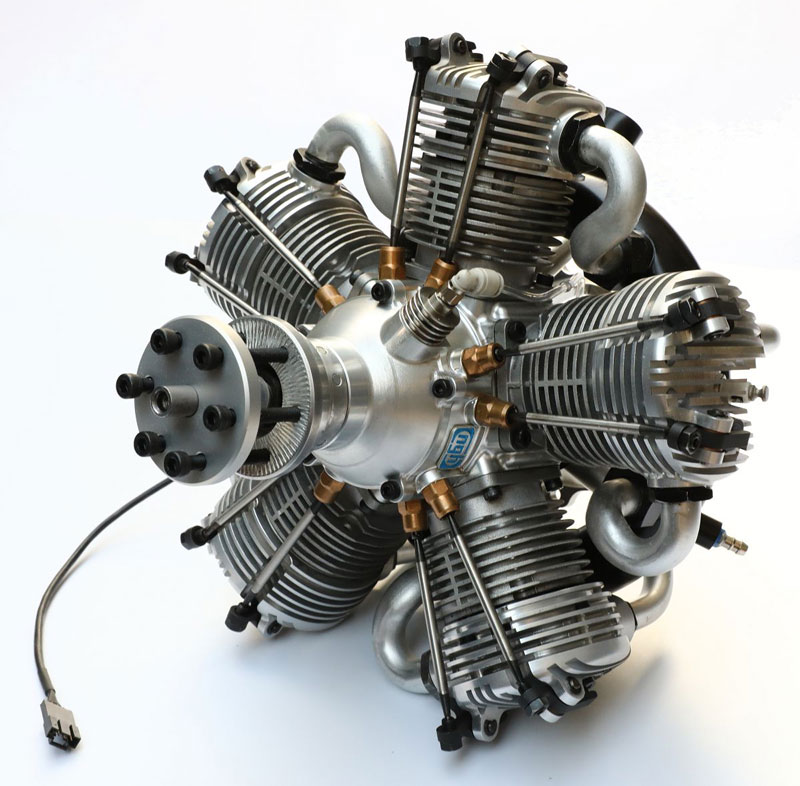

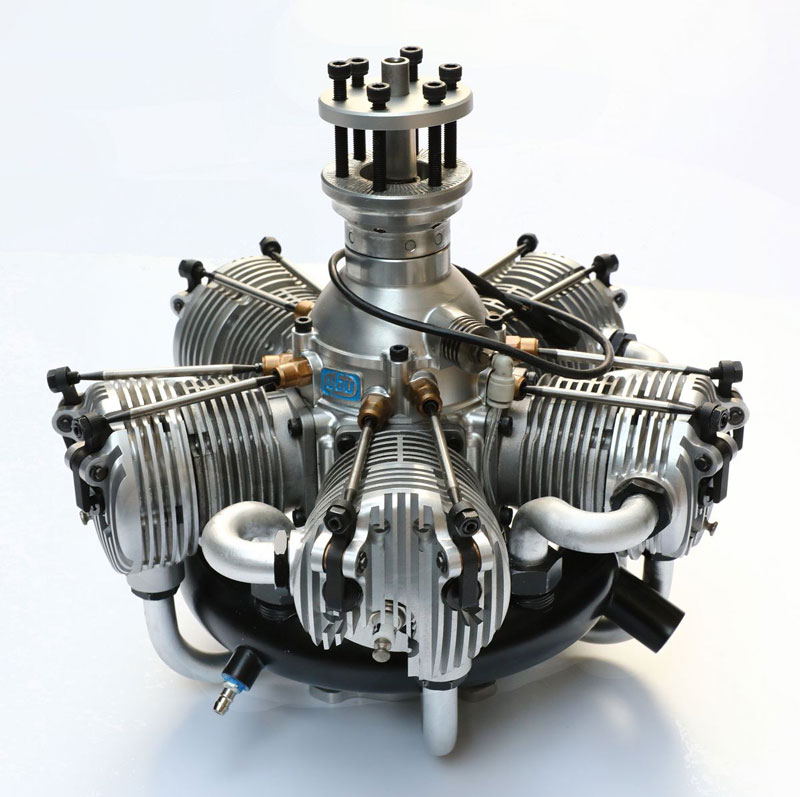

GF150R5 is a professional four-stroke gasoline engine built by
NGH engineers for RC aircraft and fixed-wing UAVs, with high
performance and low fuel consumption, large torque and low
noise, compact structure and beautiful appearance.
GF150R5 uses CM6 spark plug, standard equipped with NGH special
annular exhaust device, smooth exhaust, low voice, surging power
and less vibration.
The rear matched WALBRO carburetor makes engine adjustment
simple and convenient; The connecting rod is equipped with
needle bearing to better lubricate the pin shaft; Unique
separate lubrication circulation system makes engine lubrication
more sufficient; Unique double piston rings (one lubricating oil
ring and one sealing ring) can better seal and lubricate; The
unique supercharging structure increases the adaptability of the
engine to the environment; The cylinder liner is made of
wear-resistant ductile iron. The roundness tolerance of the
inner hole of the cylinder block is within 0.01mm, and the
accuracy is much higher than 0.03mm of the inner hole roundness
tolerance of the aluminum alloy chrome-plated cylinder liner. In
principle, the aluminum alloy chrome-plated cylinder liner does
not meet the environmental protection requirements of the
European Union.
|
GF150R5 product features:
*Ultra-high stability, large
torque output, ultra-low vibration
*Low fuel consumption, low noise, high wear resistance,
power weight ratio greater than 2
*Suitable for long-endurance UAV and RC virtual aircraft
*NGH special annular exhaust device, smooth exhaust and
low sound
*The matched Walbro carburetor is reliable in operation
and easy to tune
*CNC refined double-needle bearing main connecting rod
and solid and durable integral bronze auxiliary
connecting rod
*RCEXL automatic angle entry asynchronous ignition
system specially manufactured for NGH
*RCEXL CM6 spark plug
*High quality bearing
|
|
Specifications:
Displacement:
149.55cc
Weight: Engine - 4600g
Ignition -
430g
RPM Range: 1,200-6,500
Output: 6.3hp @
6,500 rpm
Requires: unleaded gasoline, oil, ignition battery
& propeller
Includes: Engine, Ignition, Muffler, Spark Plugs,
Exhaust Manifold, and Manual
Suggested Propellers:
26x16,
28x14, 30x12 (2-blade)
23x16, 26x14 (3-blade)
Technical Data:
Bore and Stroke: 36mm (b) x
29.4mm (s) (x5)
Gas/Oil Mix: 35:1 Synthetic
Replacement Spark Plug:
CM6
Carb: Walbro
Ignition: NGH (Made by Rcexl)
6-
9.6 Volt |
NGH
GF150R5
5-Cylinder 4-Stroke Gas Engine
$2350.00 - Free Shipping to Lower 48
|
