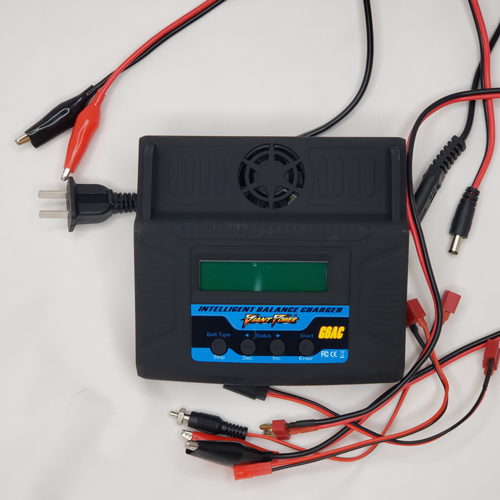

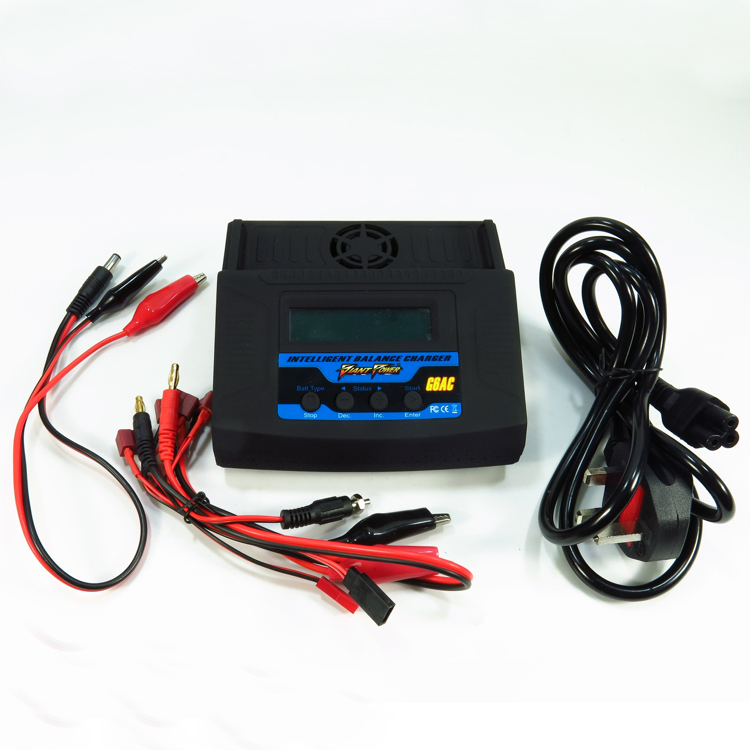

Giant Power Intelligent Balance Charger G6AC

Giant Power G6AC charger - multi chemistry charger. It charges LiHV, LI-Po, Li-Fe, Li-Ion, Ni-MH, Ni-CD, PB.

Charges up to 6 Amps or 50 Watts. Great easy to use portable charger. Plug into to your AC wall socket or use 12v DC power supply such as a field charging station or car battery.

G6AC Intelligent digital balance Charger

1. Features:

Optimised operating software

When charging or discharging, this charger has an 'AUTO' function that sets the feed current automatically. Especially for Lithium batteries, it can prevent the overcharging that comes as a consequence of user error.

High-power and high-performance circuit

It uses a circuit that has a maximum power output of 50W. As a result it can charge or discharge uo ti 15 NiCd/NiMH cells and 6 Lithium cells with a baximum current of 6.0A. The cooling system is sufficient as to maintain the temperature even at this output power.

Individual voltage balancer for Lithium cells while charging and discharging

This charger contains an individual cell voltage balancer and does not requre any additional cell balancing when charging Lithium batteries (Lilo/LiPO/LiFe). It also monitors the discharge on the individual cells. If the voltage of any one cell discharges abnormally the process will be stopped and an error message will be displayed.

Accept various types of Lithium battery

It can charge three types of Lithium batteries - Lilo, LiPo and LiFe. You can select the type of battery before you begin charging.

Lithium battery 'Fast' and 'Storage' mode

There are two special charge modes. "Fast" charge reduces the charge time of Lithium batteries and "Storage" mode adjusts the final voltage of the battery to be best suited for long term storage.

Maximum safety

• Delta-peak sensitivity:

The automatic charge termination program works on the principle of Delta-peak voltage detection.(NiCd/NiMH)

• Auto-charge current limit:

When charging NiCd or NiMH on 'AUTO' current mode, you can set the upper limit of its charge current to avoid from excessive charging. This is very useful when charging a low impedance and smaller capacity NiMH battery

• Capacity limit:

The charged capacity is caLCulated by multiplying the charge current by time. If the charging capacity exceeds the limit the charge will be terminated automatically if you have set the maximum value.

• Temperature limit:

The temperature of the battery while charging will rise internally. If you set a temperature limit the charge will be stopped when the limit has been reached.

• Charge time limit:

You are able to restrict the maximum charge time.

• Input power monitor:

To protect the battery used as input from being damaged the voltage of it always monitored. If it drops below the lower limit the charge will be terminated.

• Automatic cooling fan:

The electric cooling fan comes into action automatically only when the internal temperature of the unit is above a cetrain level.

Data store/load

For users convenience a maximum of 5 different batteries profiles can be stored. This allows you to set up the battery profiles to call up at any time without a need to reproram it.

Cyclic Charging/Discharging

Perform 1 to 5 cycles of charge>discharge or discharge>charge continually for battery refreshing and balancing.

2. SPECIFICATIONS:

2.1 Input voltage range:..............................DC 11~18.0V - AC 100~240V

2.2 Charge current range...........................0.1~6.0A

2.3 Discharge current range.......................0.1~1.0A

2.4 Charge power limit...........................max.50W

2.5 Discharge power limit......................max.5W

2.6 Balance current.....................................max.300mA

2.7 Balance tolerance................................ ± 0.01V

2.8 NiCd/NiMH battery cell count.............1~15 cells 1.2V~

2.9 Lithium battery types............................Li-po/ Li-ion/Li-Fe/LiHv

2.10 Lithium battery count.................1-6 series (3.7V~22.2V)

2.11 Pb battery voltage..............................2~20V

2.12 Weight:.................................................400g

2.13 Dimensions:.......................................136 x 127 x 56 mm
