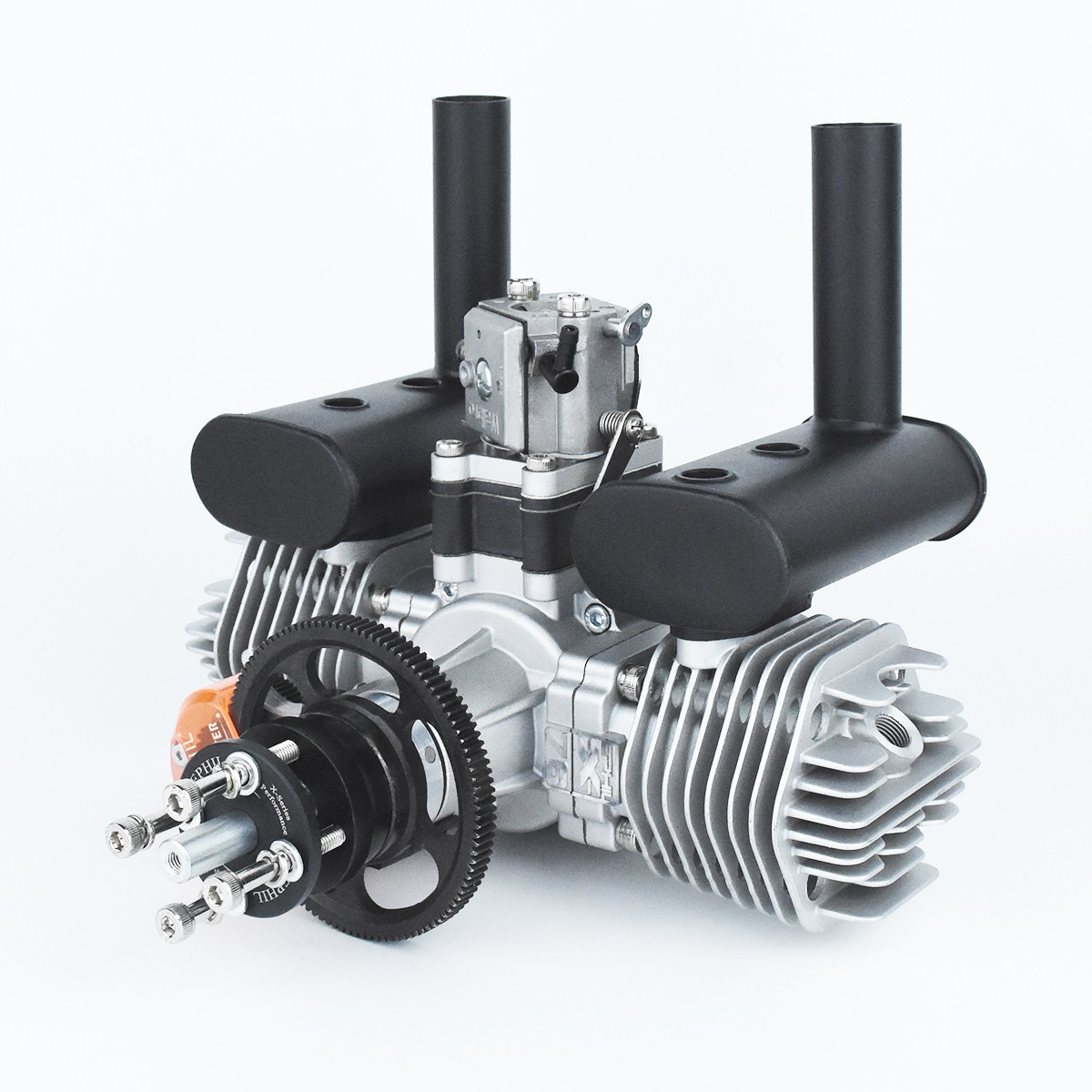

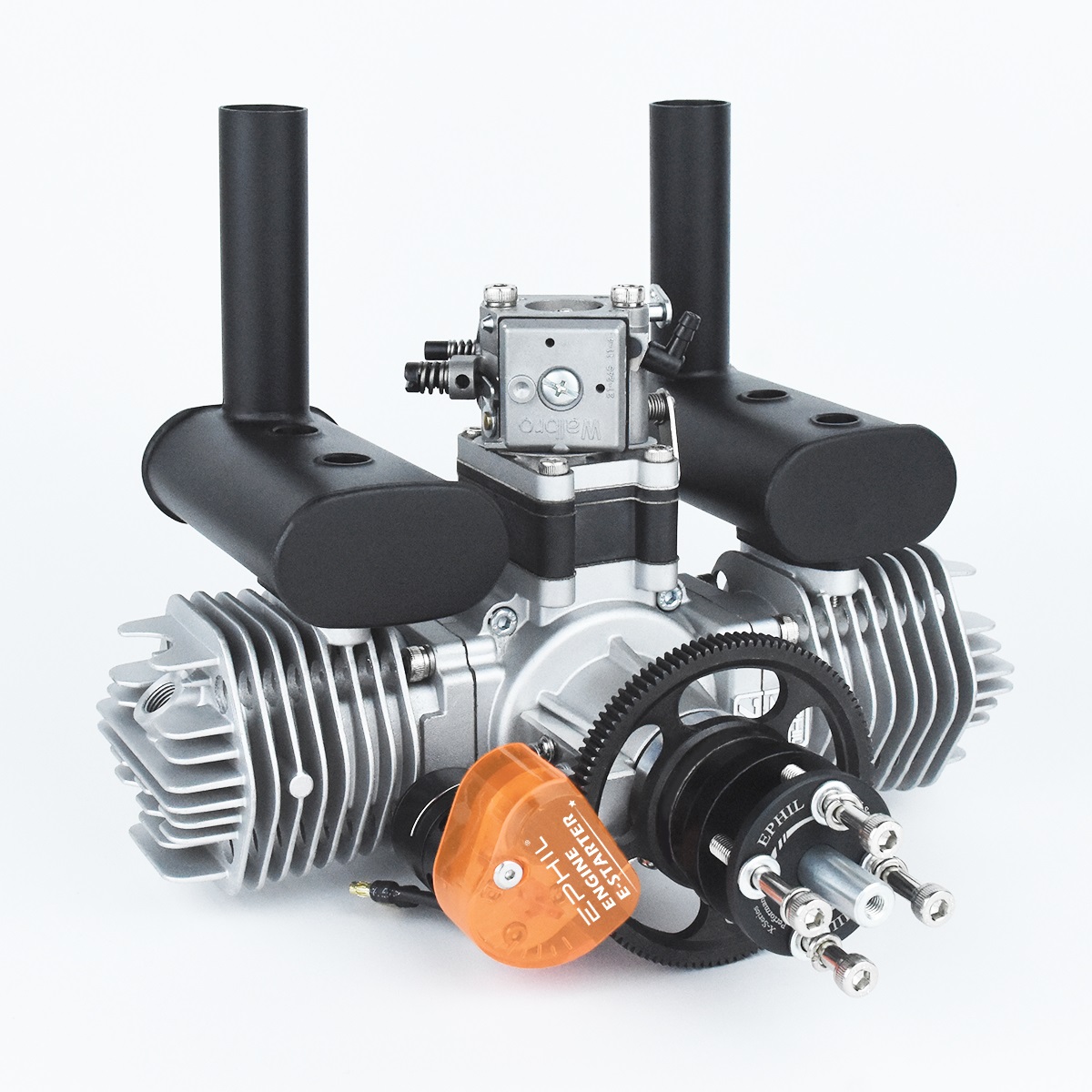

Ephil 76cc Twin Gas Engine
w/Brushless Auto Start System
12
Month Manufactrer Warranty - Serviced right here in the USA.
![](images/gas/EPHIL/X-76cc-T-Pro/X76T_pro_photo2.jpg)

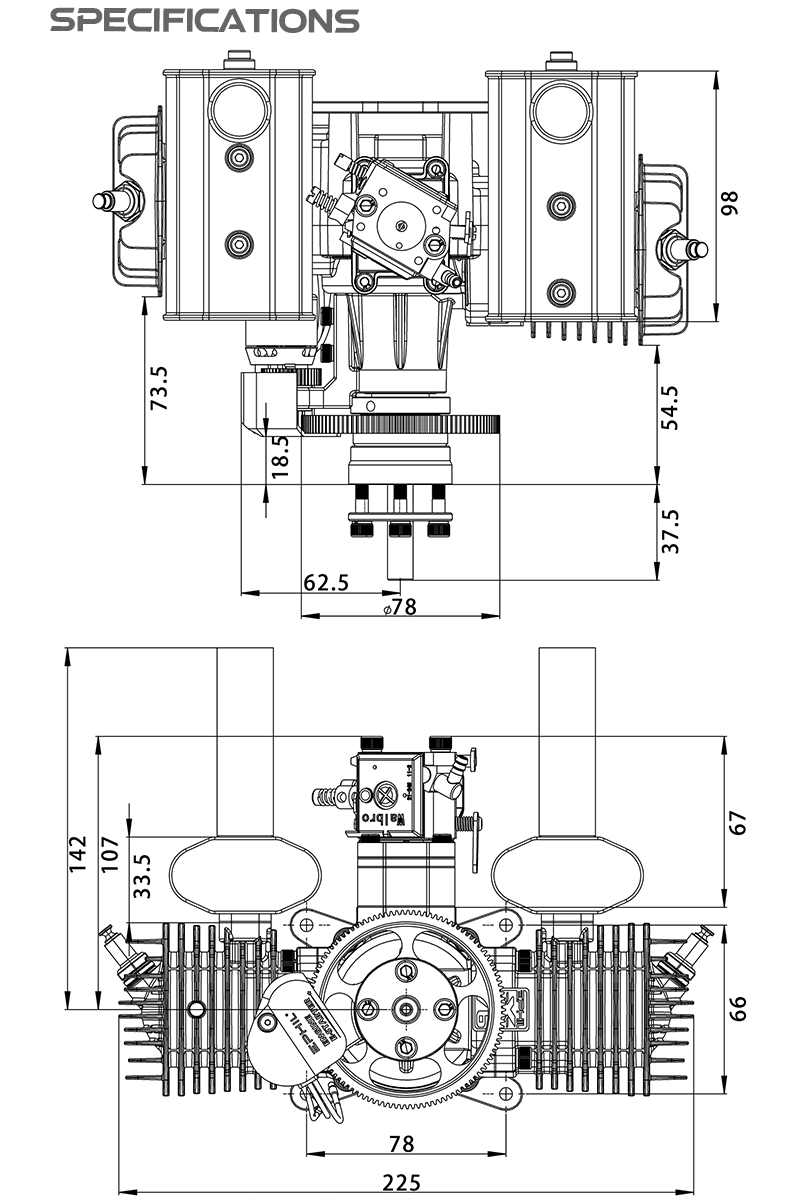

![](images/gas/EPHIL/X-76cc-T-Pro/detail/X-76-T-PRO-5.png)
The X-76cc-T opposite twin cylinder engine runs smoothly over the
entire engine speed range.
The opposed crankshaft and piston eliminate most of the unwanted
vibration during operation.
The light weight design allows the engine to have a superior
thrust-to-weight ratio compared to other engines of the same
displacement, making it very suitable for small-scale RC aircraft
and UAVs. Made and assebled with quality parts such as Walbro
Carburetor, NSK earings, even Iridium CM6 spark plugs are standard.
X-76cc-T Pro
Displacement: 76cc (4.64 cu in) Performance: 9.0 HP Speed
Range: 1600-7300 RPM (Test Propeller-24*8) Bore: 39 mm (1.54
in) Stroke: 32.5mm (1.28 in) Static Thrust: 18.5 kg @ 100
m ALT (40.8 lb @ 328 ft ALT) Static Thrust: 16.8 kg @ 1800 m
ALT (37.1 lb @ 5900 ft ALT) Compression Ratio: 9:1
![](https://www.milehighrc.com/images/gas/120CC/Edge_AP/Manual_Link.jpg)
ESC Starter Manual
Here
|
Lubrication Ratio: 30:1 (Fuel: 2-Stroke Motor Oil) Ignition
Voltage: 6-14 V Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 22x10; 23x8; 23x10; 24x8 Weight of
Main Engine: 1935g Weight of Muffler Set: 174g (L&R Mufflers;
Screws) Weight of Engine Mount: 72g Weight of Spark Plug:
13.5g *2 (CM6*2) Weight of CDI (Ignition): 173g Weight of
Starter: 123g Weight of ESC: 36g Total Weight: 2417g (5.3
lb) |
Dealers Welcome

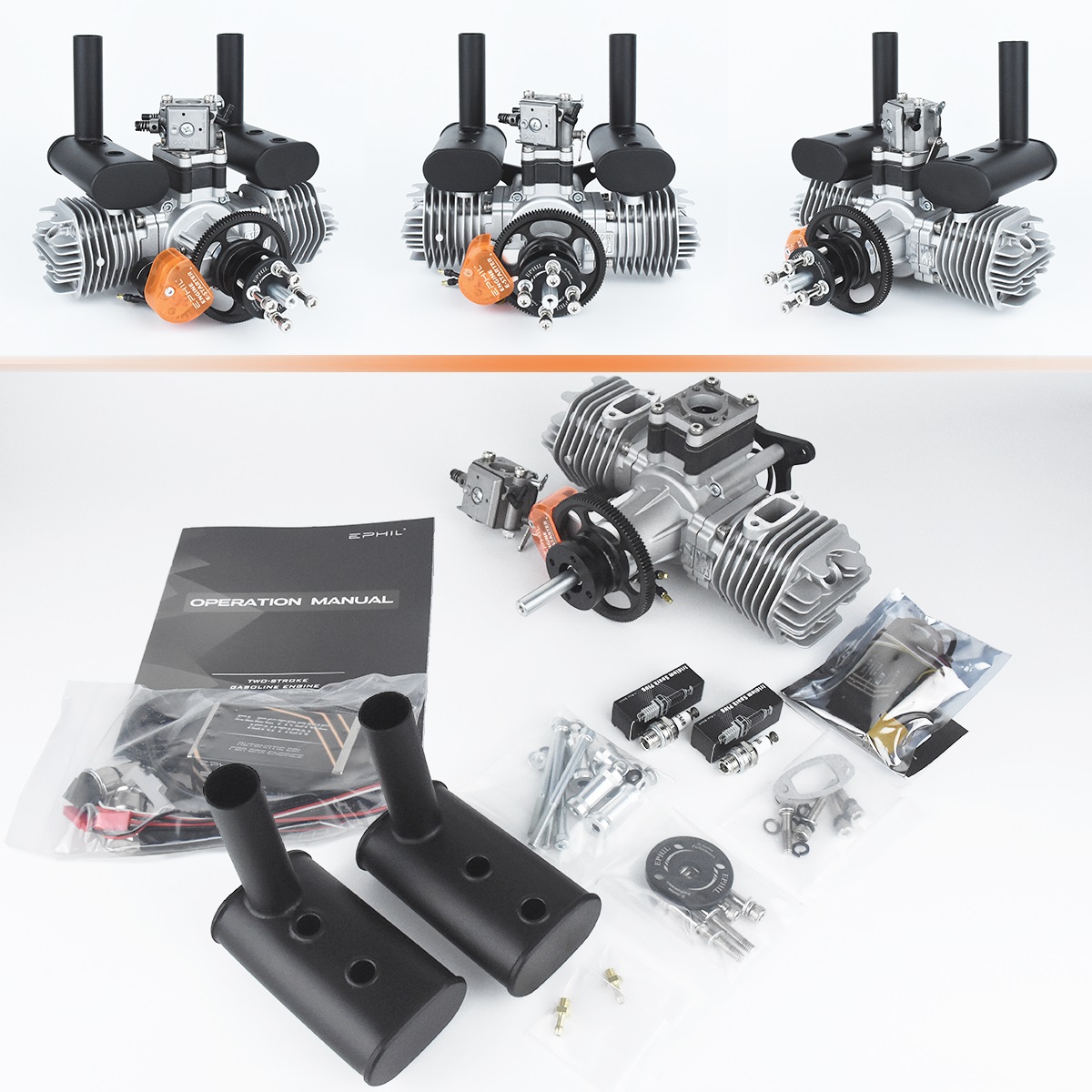

![](images/gas/EPHIL/X-76cc-T-Pro/X76T_pro_photo4.jpg)
Ephil 76cc Twin Gas Engine
w/Brushless Auto
Starter
$669.00
