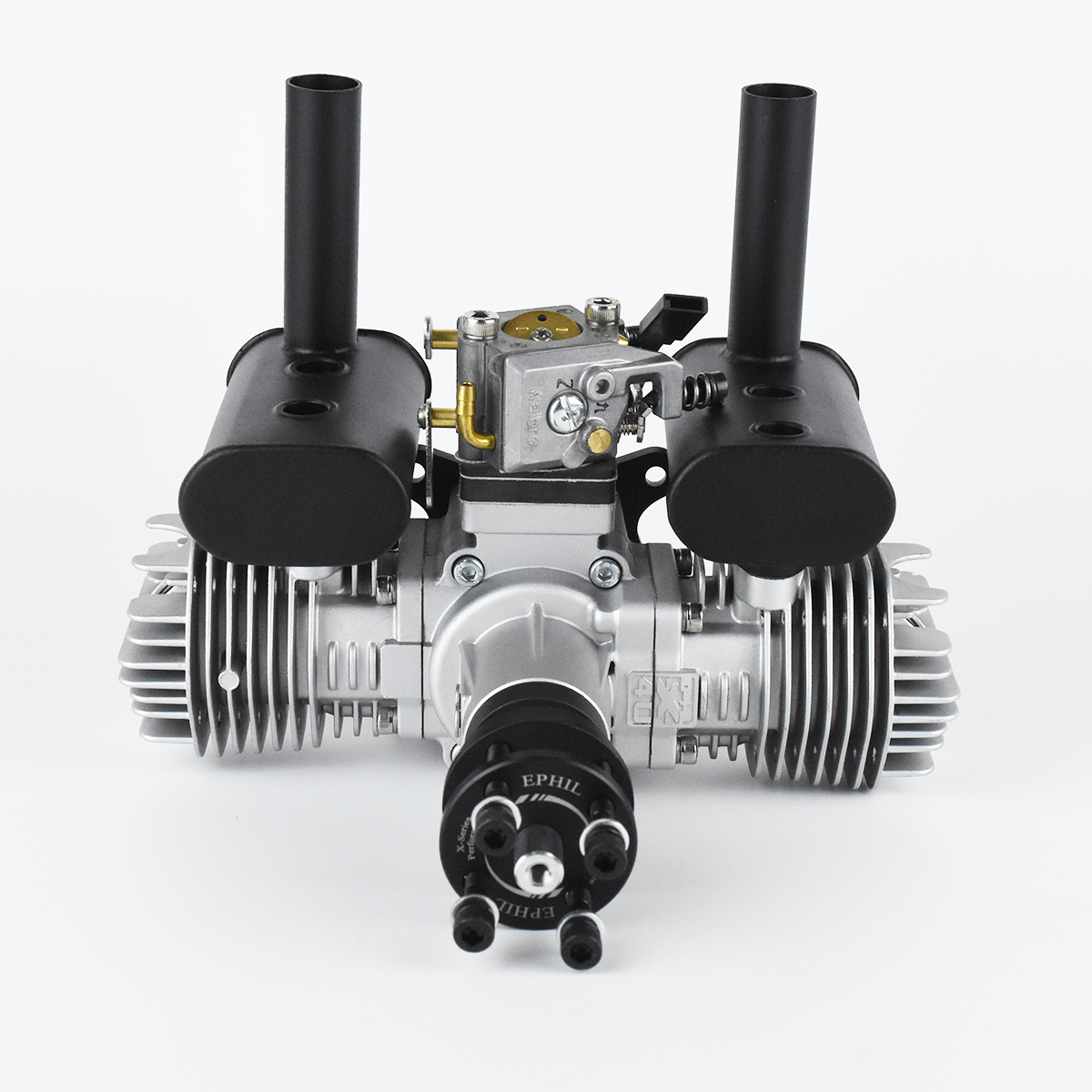

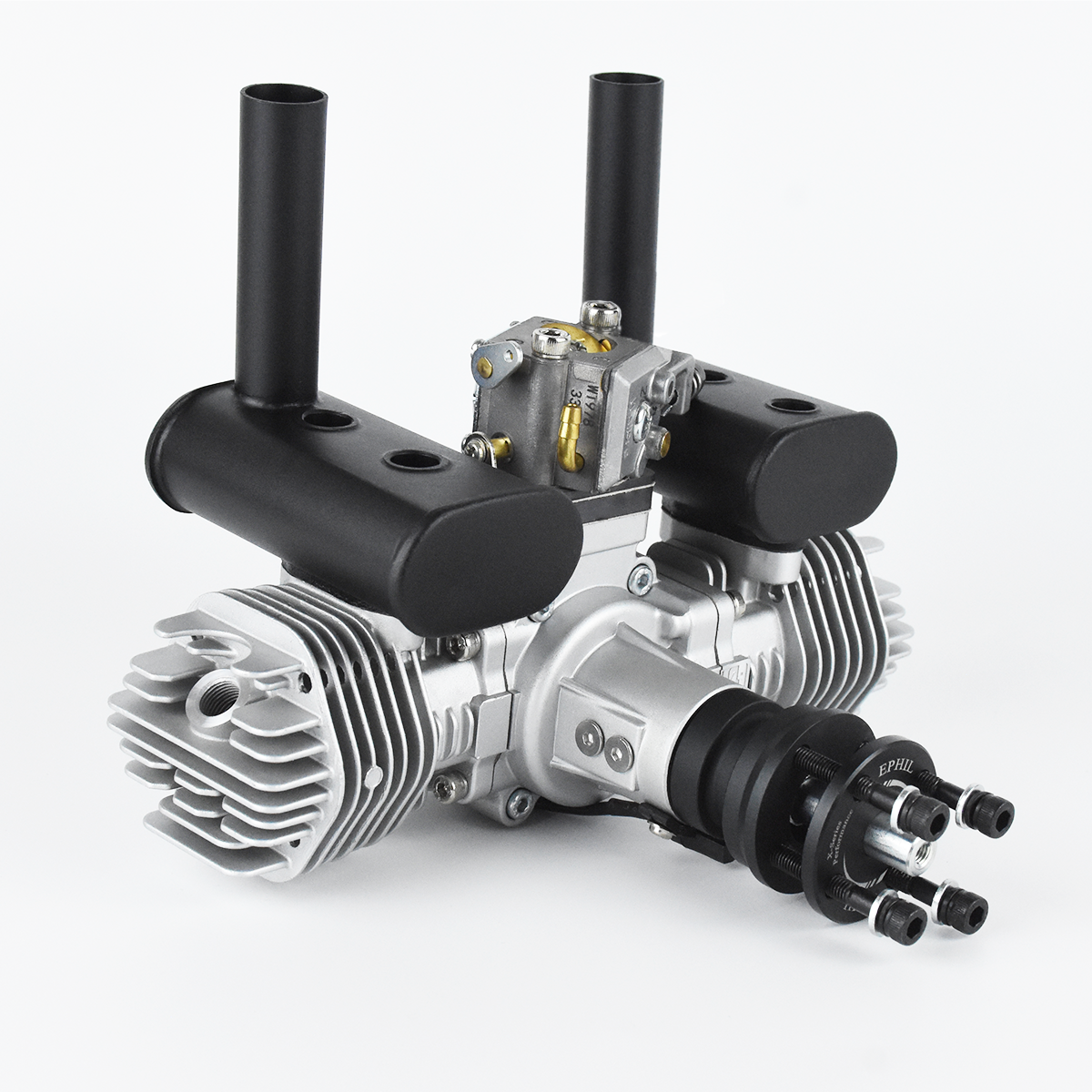

Ephil 40T Gas Engine
12
Month Manufactrer Warranty - Serviced right here in the USA.


The X series opposite twin cylinder engine runs smoothly over the
entire engine speed range.
The opposed crankshaft and piston eliminate most of the unwanted
vibration during operation.
The light weight design allows the engine to have a superior
thrust-to-weight ratio compared to other engines of the same
displacement, making it very suitable for small-scale RC aircraft
and UAVs.
|
X-40cc-T
Displacement: 40cc (2.44 cu in)
Performance: 4.6 HP
Speed Range: 1800-8300 RPM (Test
Propeller-20*8)
Bore: 32 mm (1.26 in)
Stroke: 27mm (1.06 in)
Static Thrust: 11.5 kg 100 m ALT (25.4
lb @ 328 ft ALT)
Static Thrust: 9.0 kg @ 1800 m ALT (19.8
lb @ 5900 ft ALT)
Compression ratio: 9:1
|
Lubrication ratio: 30:1 (Fuel: 2-Stroke
Motor Oil)
Ignition Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 20x 8; 20x10;
19x8; 19x10
Weight of Main Engine: 1150g
Weight of Muffler Set: 136g ( L&R
Mufflers; Screws)
Weight of Aluminum Standoffs Set: 84g
Weight of Spark Plug: 13.5g*2 (CM6*2)
Weight of CDI (Ignition): 173g
Total Weight: 1570g (3.46 lb)
|
Tech note: The prop bolt pattern on this enigne is
the same as most 55-70cc engines. Most props pre-drilled props in
the 19" - 20" are drilled for the smaller 30cc-40cc pattern. It is
suggested users purchase undrilled props and drill them to the
55cc-70cc pattern.
Dealers Welcome
Ephil 40cc Twin Gas Engine
$469.00
We also have quite a few Ephil
40cc twins with the smaller ME8 spark plugs. We intend to carry the
CM6 spark plug version of this engine not the ME8 version.
If you are ok with the ME8
plugs we will sell them for
$449.00 shipped to the lower 48. Same warranty, same
performance, just different then what people think is "normal" with
the smaller plugs. They actually fit better in tighter cowls. Drop
us a line of you want one
