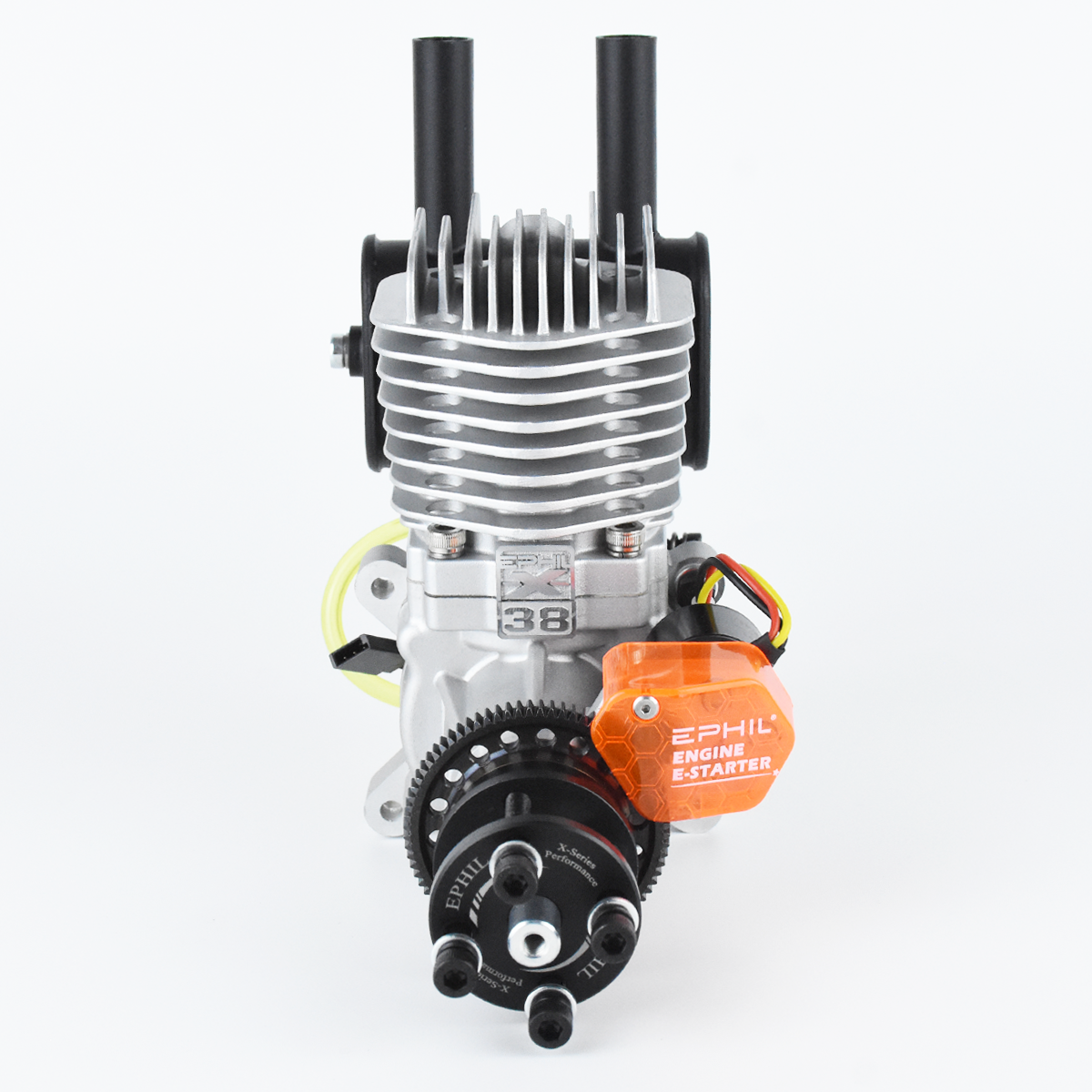

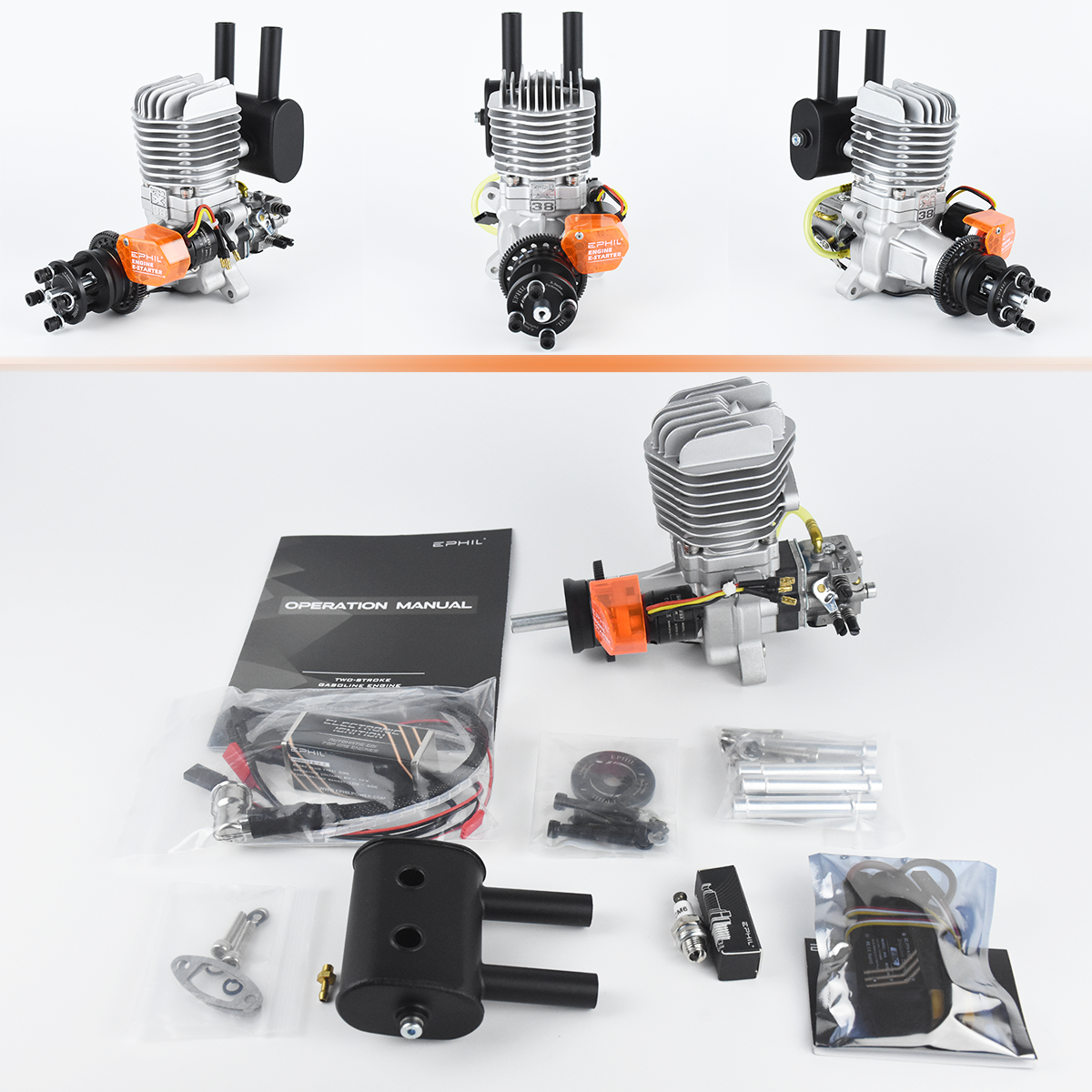

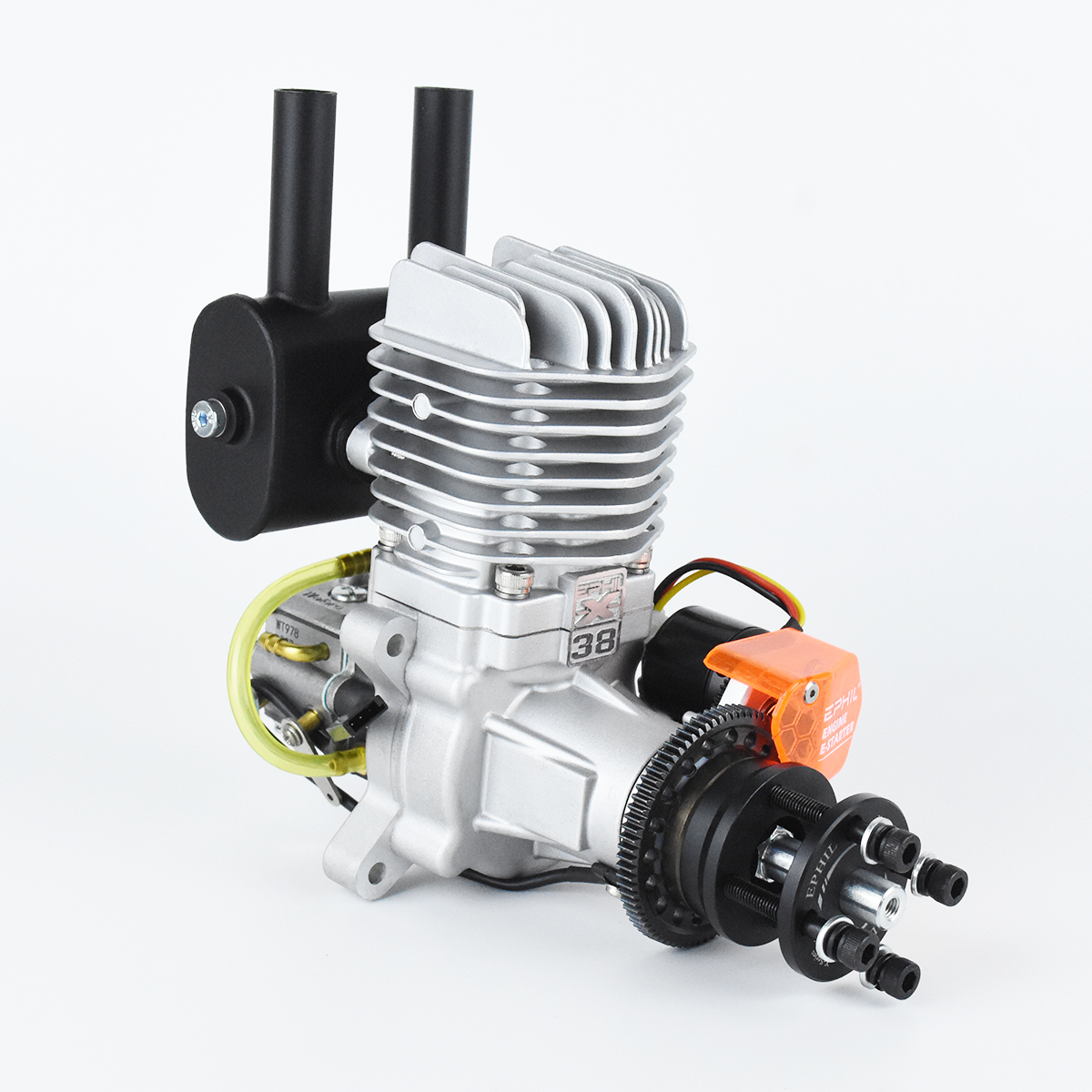

Ephil 38R Pro

38cc Rear Exhuast Gas Engine w/Auto Starter

12 Month Manufactrer Warranty - Serviced right here in the USA.

As a gasoline engine specifically designed for fixed-wing remote-controlled aircraft,
the 38cc engine boasts a concise design, excellent performance, and a smooth acceleration curve.
It is sure to be a favored choice among hobbyists of small and medium-sized model airplanes.

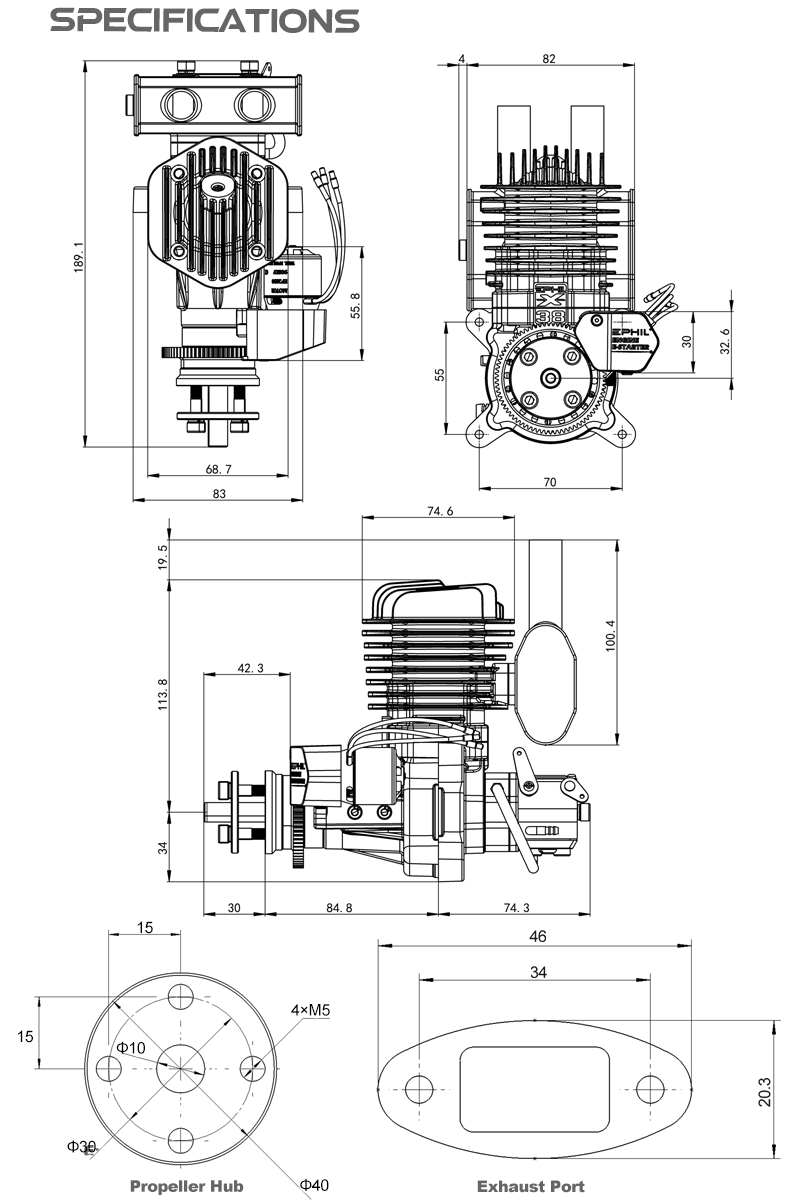

X-38cc-R PRO

Displacement: 38cc (2.33 cu in)

Performance: 4.2HP

Speed Range: 1800-7300 RPM (Test Propeller-20*9)

Bore: 39mm (1.54 in)

Stroke: 32.5mm (1.28 in)

Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)

Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)

Compression ratio: 9:1

ESC Starter Manual Here

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 19x8; 19x10; 20x8; 20x10

Weight of Main Engine: 1216g

Weight of Muffler Set: 73g

Weight of Aluminum Standoffs Set: 100g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Weight of Starter: 109g

Weight of ESC: 36g

Total Weight: 1542.5g (3.4 lb)

Tech note: The prop bolt pattern on this enigne is the same as most 55-70cc engines. Most pre-drilled props in the 19" - 20" are drilled for the smaller 30cc-40cc pattern. It is suggested users purchase undrilled props and drill them to the 55cc-70cc pattern.

Dealers Welcome

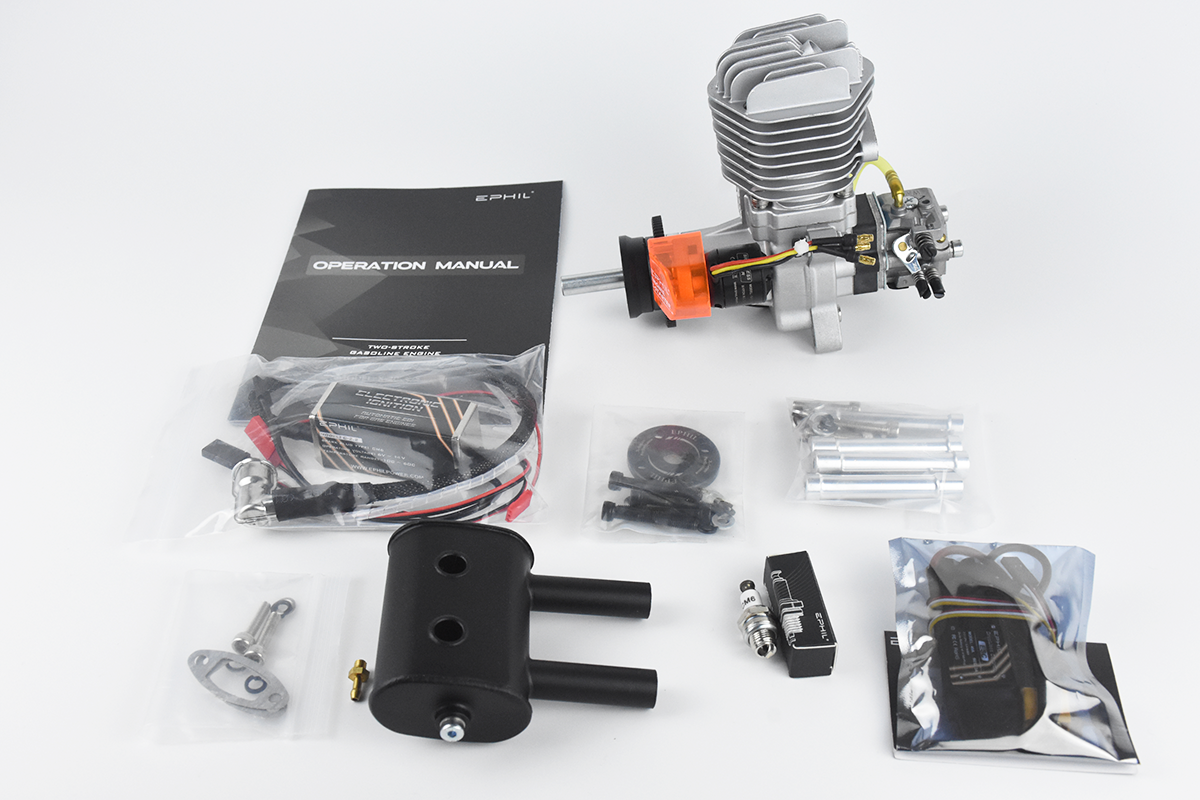

Ephil 38cc Rear Exhaust Gas Engine

with Brushless Auto Start System

$469.00

All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
