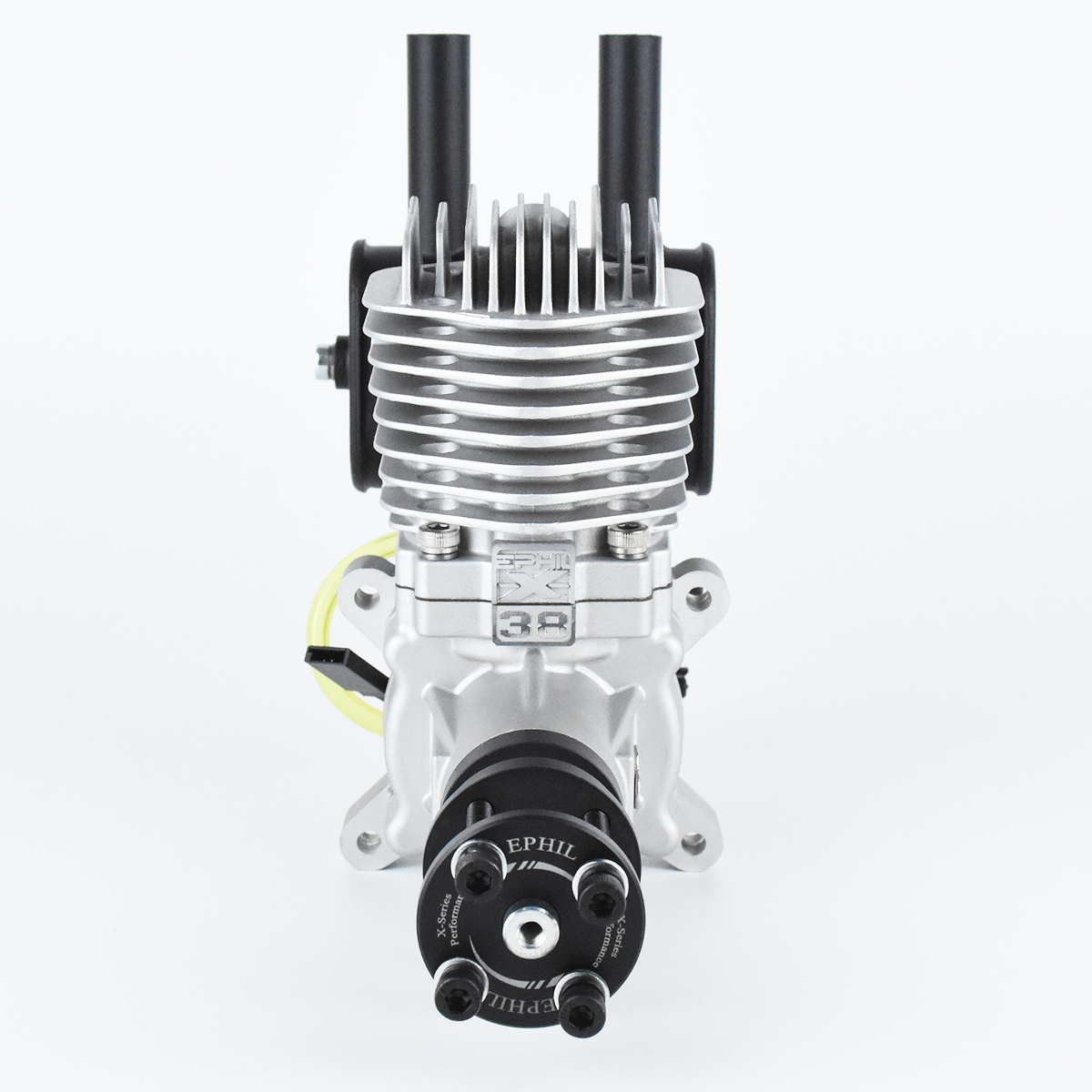

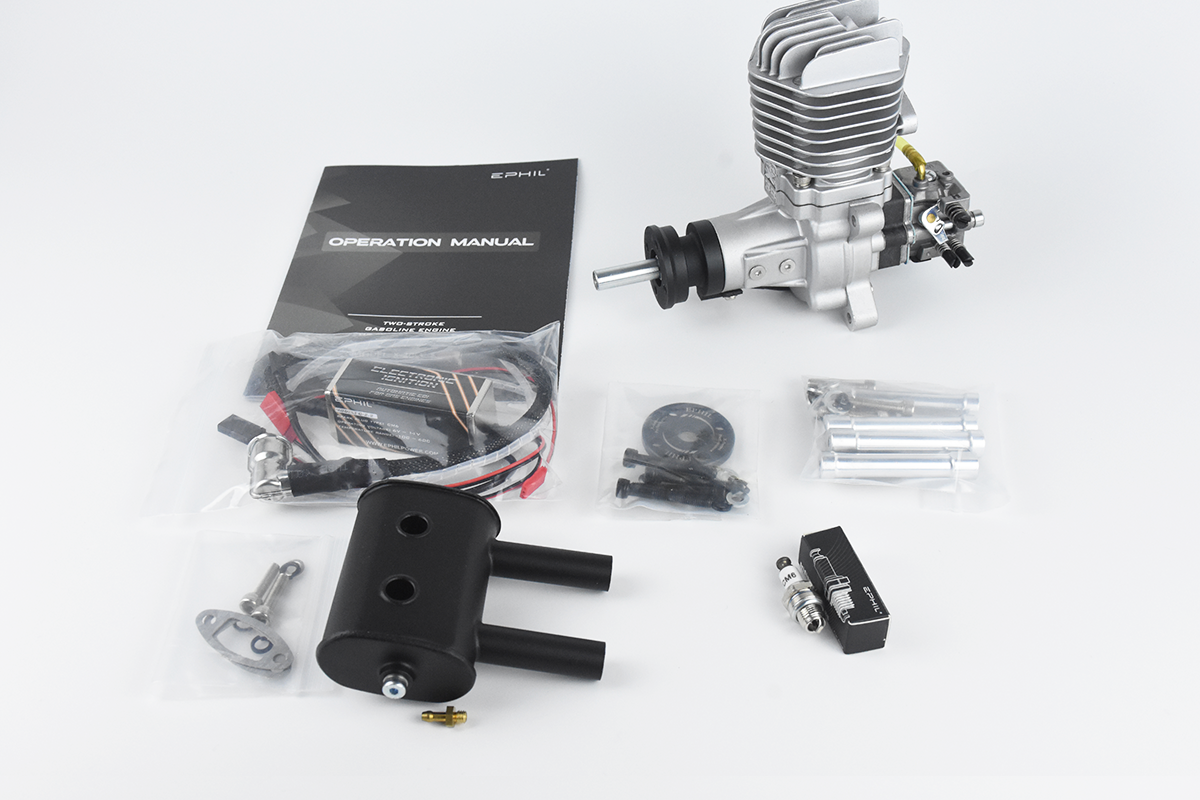

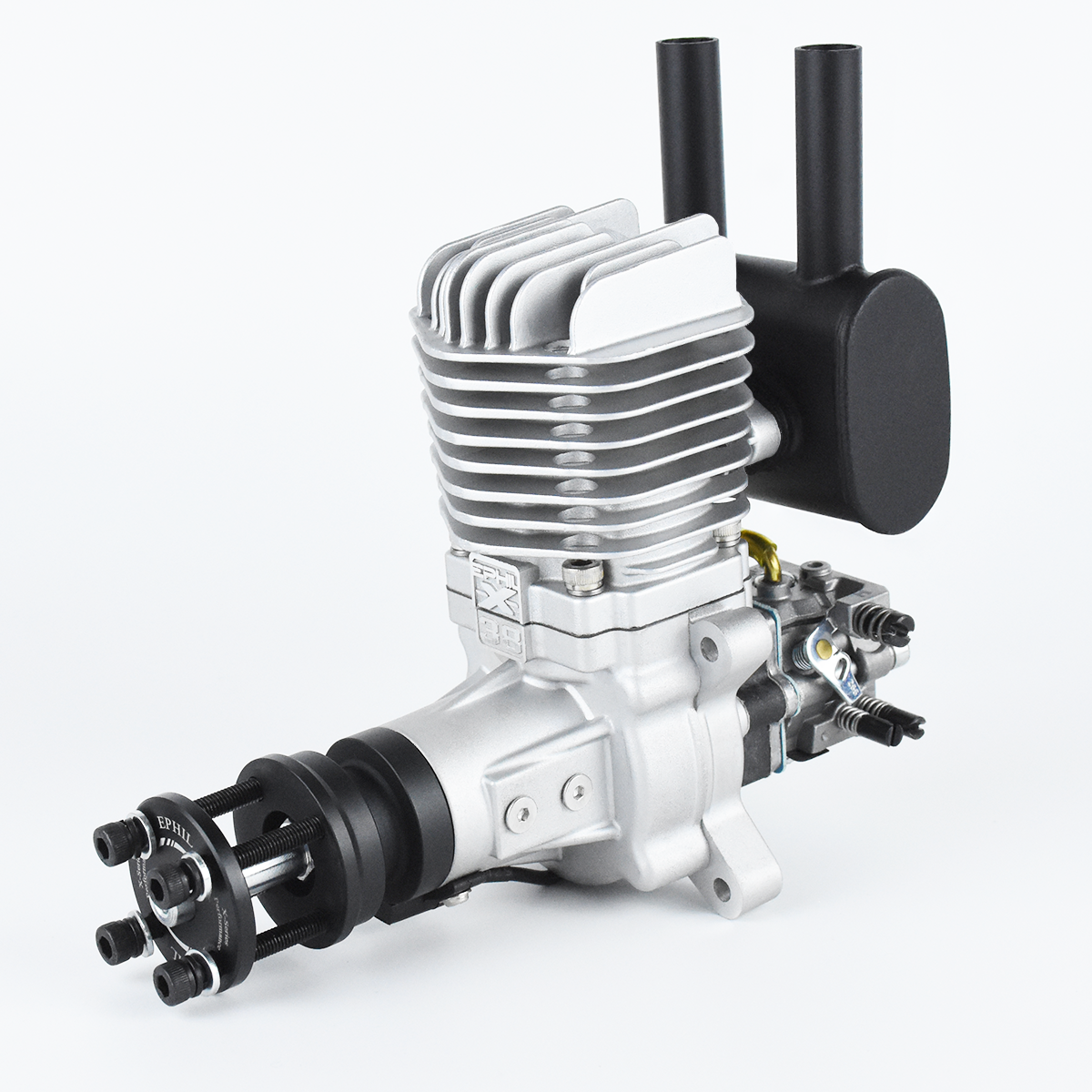

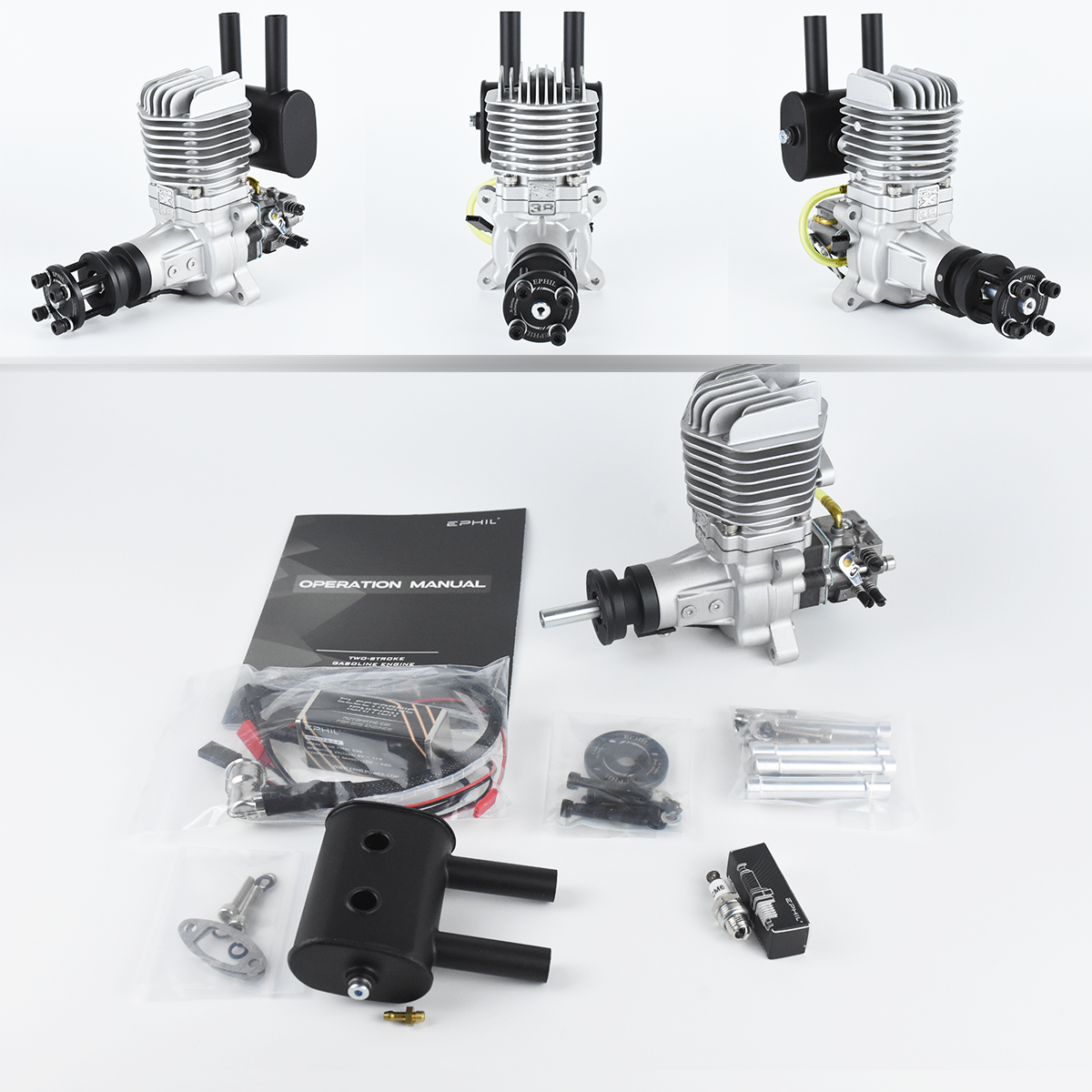

Ephil 38R Rear Exhuast Gas Engine





12 Month Manufactrer Warranty - Serviced right here in the USA.



Ephil 38cc hobby shop near me Mile High RC

38cc 2 strke remote control hobby rc airplane



This is a single cylinder rear exhaust engine with a displacement of 38cc. The engine body is light and compact with perfect size to provide users with the best flying experience. It uses Walbro carburetor and NSK bearings both consiered to be well established quality parts in the industry.









X-38cc-R

Displacement: 38cc (2.33 cu in)

Performance: 4.2HP

Speed Range: 1800-7300 RPM  (Test Propeller-20*9)

Bore: 39mm (1.54 in)

Stroke: 32.5mm (1.28 in)

Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)

Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)

Compression ratio: 9:1



Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 19x8; 19x10; 20x8; 20x10

Weight of Main Engine: 1040g

Weight of Muffler Set: 73g

Weight of Aluminum Standoffs Set: 100g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Total Weight: 1330.5g (2.93 lb)



Tech note: The prop bolt pattern on this enigne is the same as most 55-70cc engines. Most props pre-drilled props in the 19" - 20" are drilled for the smaller 30cc-40cc pattern. It is suggested users purchase undrilled props and drill them to the 55cc-70cc pattern.



Dealers Welcome



rc hobby shop

Ephil 38cc Rear Exhaust Gas Engine

$389.00







 EME35cc pitts muffler EME35CC Canister Muffler



All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
