Ephil 20S Side Exhuast Gas Engine

12 Month Manufactrer Warranty - Serviced right here in the USA.

DLE 20 20cc 2 stroke RC airplane engine

Ehpil

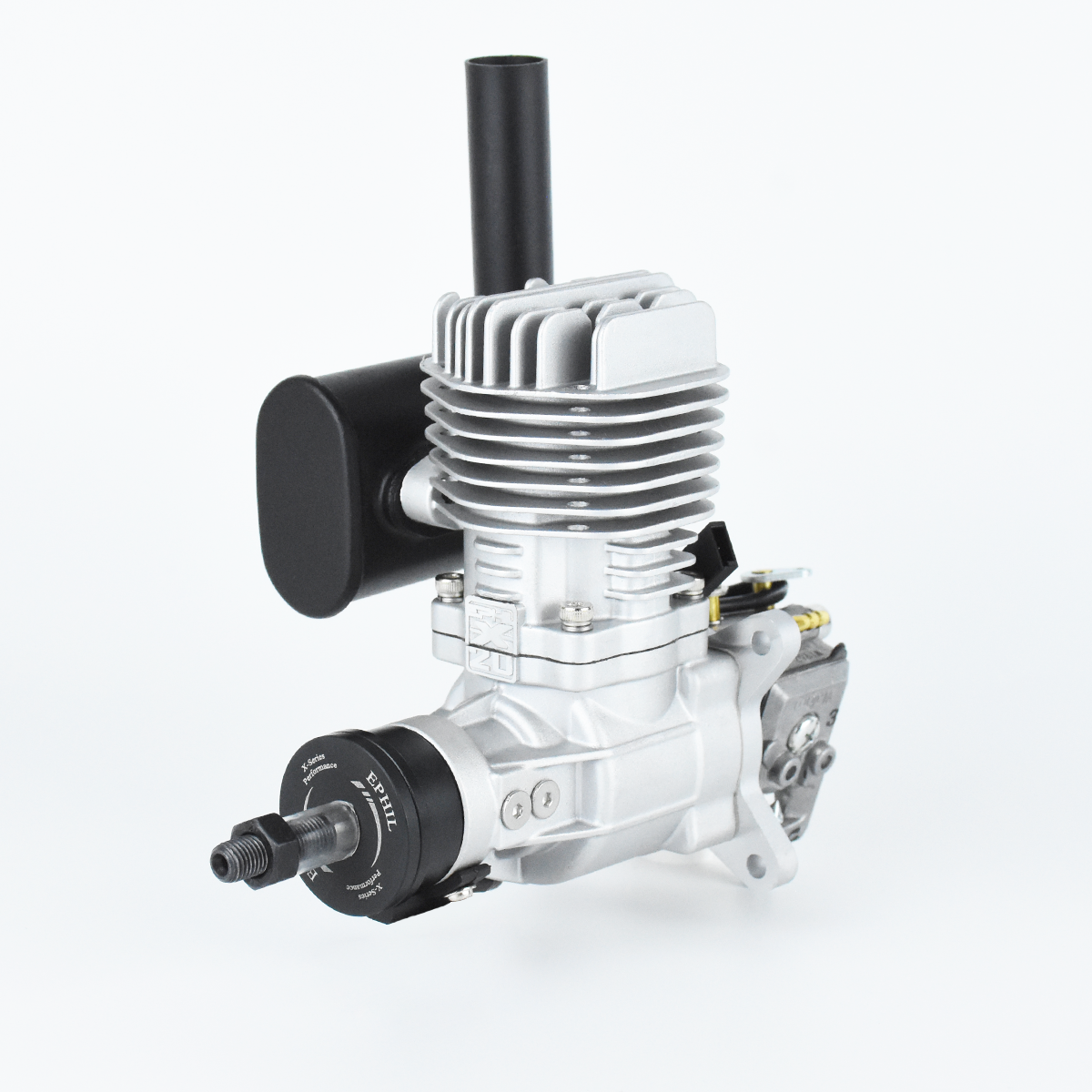

This is a single cylinder engine with a displacement of only 20 cc. The design and mounting method are different from other 20cc engines on the market. The engine body is light and compact with perfect size to provide users with the best flying experience. It uses Walbro carburetor and NSK bearings to provide better performance and stability.

The Ephil 20cc engine adopts an integrated nylon mount, which, when installed correctly, can reduce engine vibration during engine running and help improve stability. However it is not sutable for rail mounts as you would normaly see in this size engine.

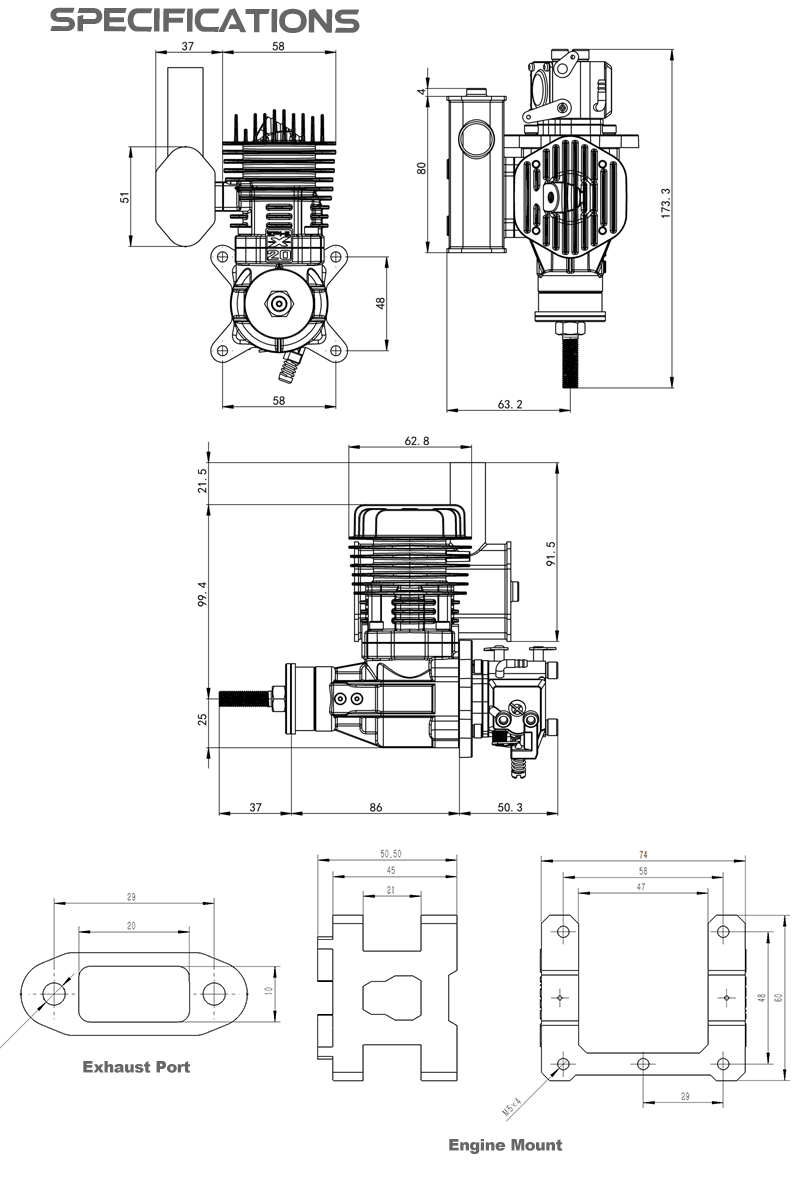

X-20cc-S

Displacement: 20cc (1.22 cu in)

Performance: 2.5 HP

Speed Range: 1800-8600 RPM (Test Propeller-16*8)

Bore: 32 mm (1.26 in)

Stroke: 27mm (1.06 in)

Static Thrust: 7.0 kg @ 100 m ALT (15.4 lb @ 328 ft ALT)

Static Thrust: 5.4 kg @ 1800 m ALT (11.9 lb @ 5900 ft ALT)

Compression ratio: 9:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6

Weight of Main Engine: 697g

Weight of Muffler Set: 62g

Weight of Engine Mount Set: 115g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Total Weight: 991.5g (2.19 lb)

Dealers Welcome

Ephil 20cc

Ephil 20cc Side Exhaust Gas Engine

$269.00

All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
