Ephil 20R Pro

 20cc Rear Exhuast Gas Engine w/Auto Starter





12 Month Manufactrer Warranty - Serviced right here in the USA.



Walbro 2 stroke gas engine Ephil 20

20R - ProMile High RCEphil

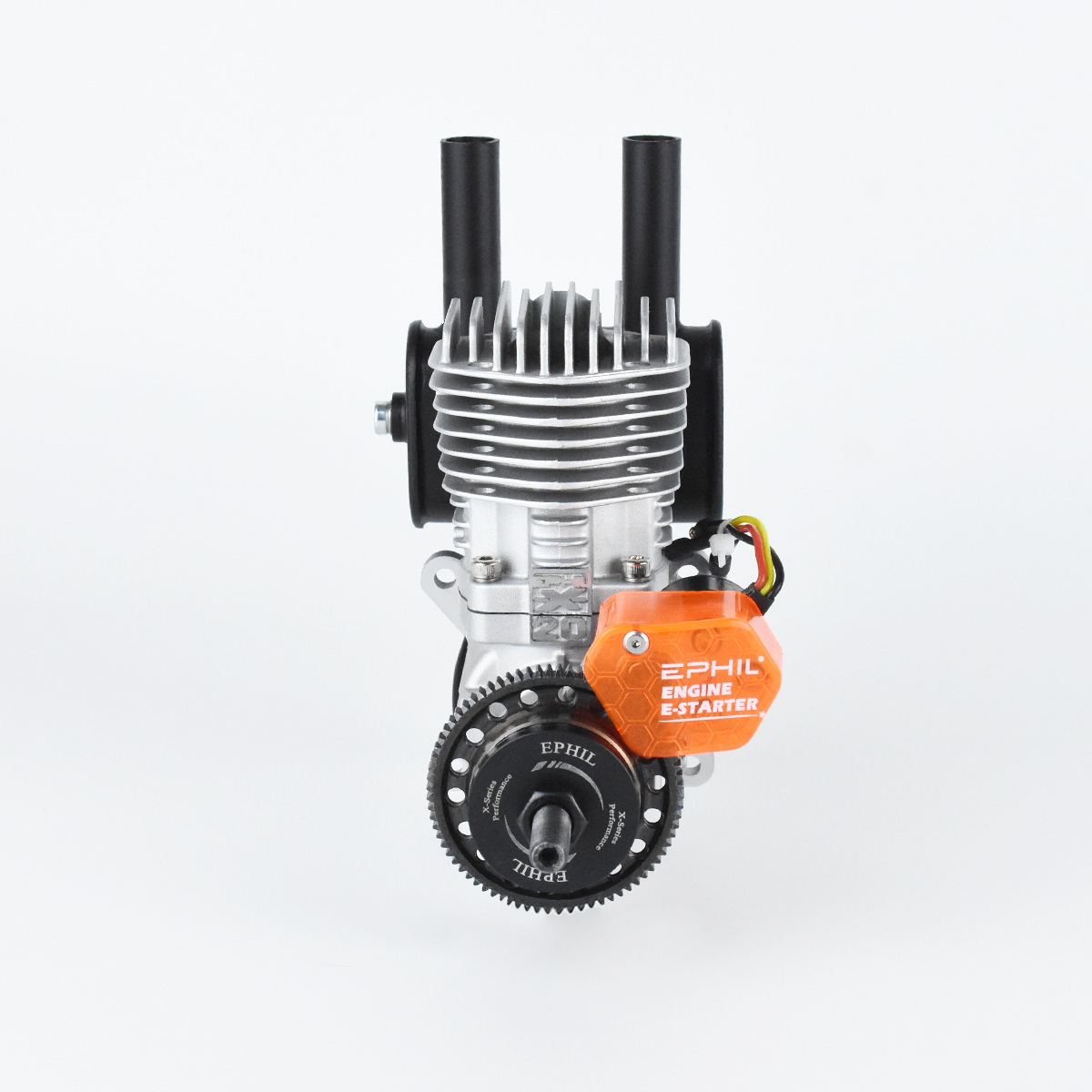

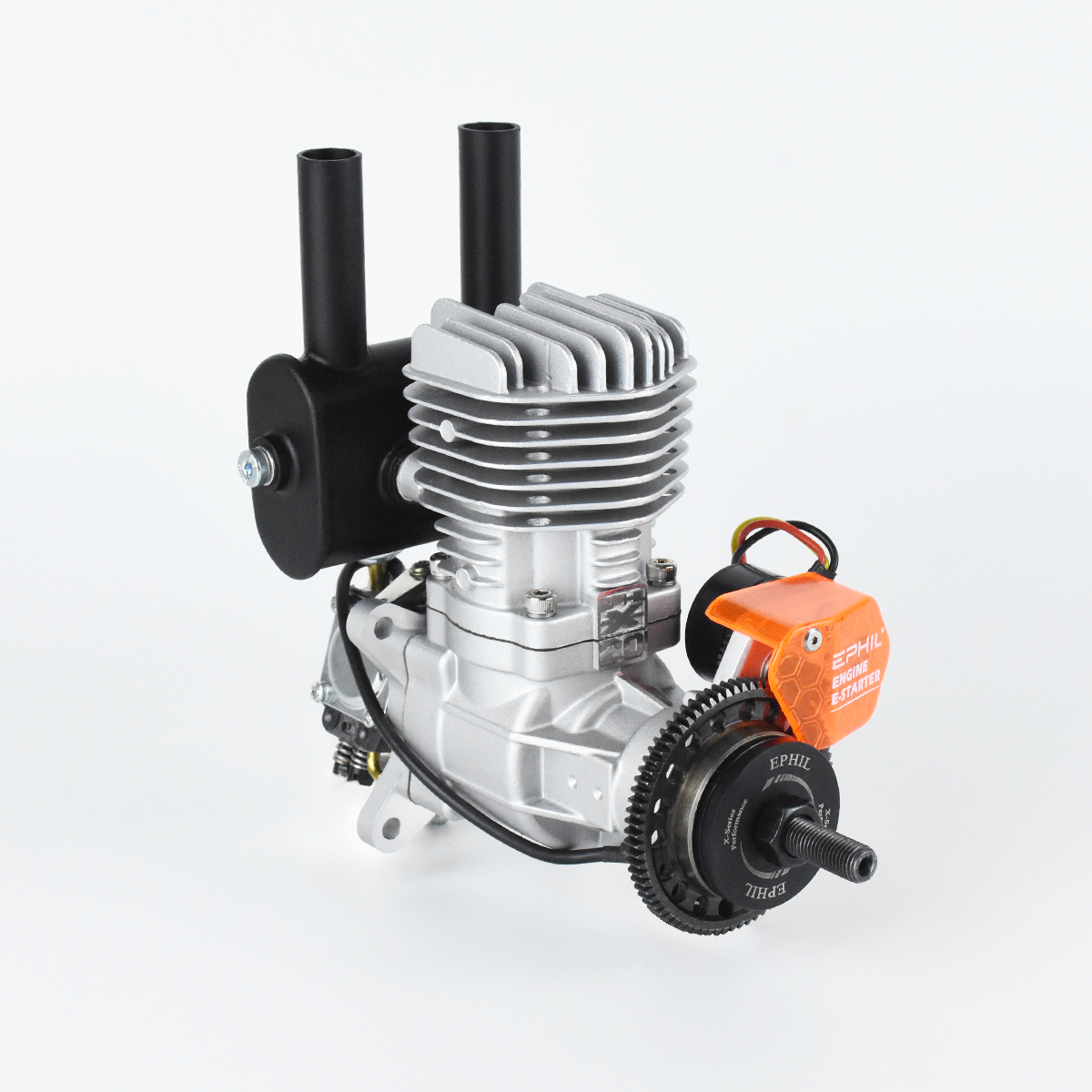

This is a single cylinder engine with a displacement of only 20cc. Unique in that it has a brushless autostarter. The design and mounting method of the engine are different from other 20cc engines on the market in that it is not a rail mount engine. The engine body is light and compact with perfect size to provide users with the best flying experience. It uses Walbro carburetor and NSK bearings to provide better performance and stability.



The Ephil 20cc engine adopts an integrated nylon mount, which, when installed correctly, can reduce engine vibration during engine running and help improve stability. However it is not sutable for rail mounts as you would normaly see in this size engine.

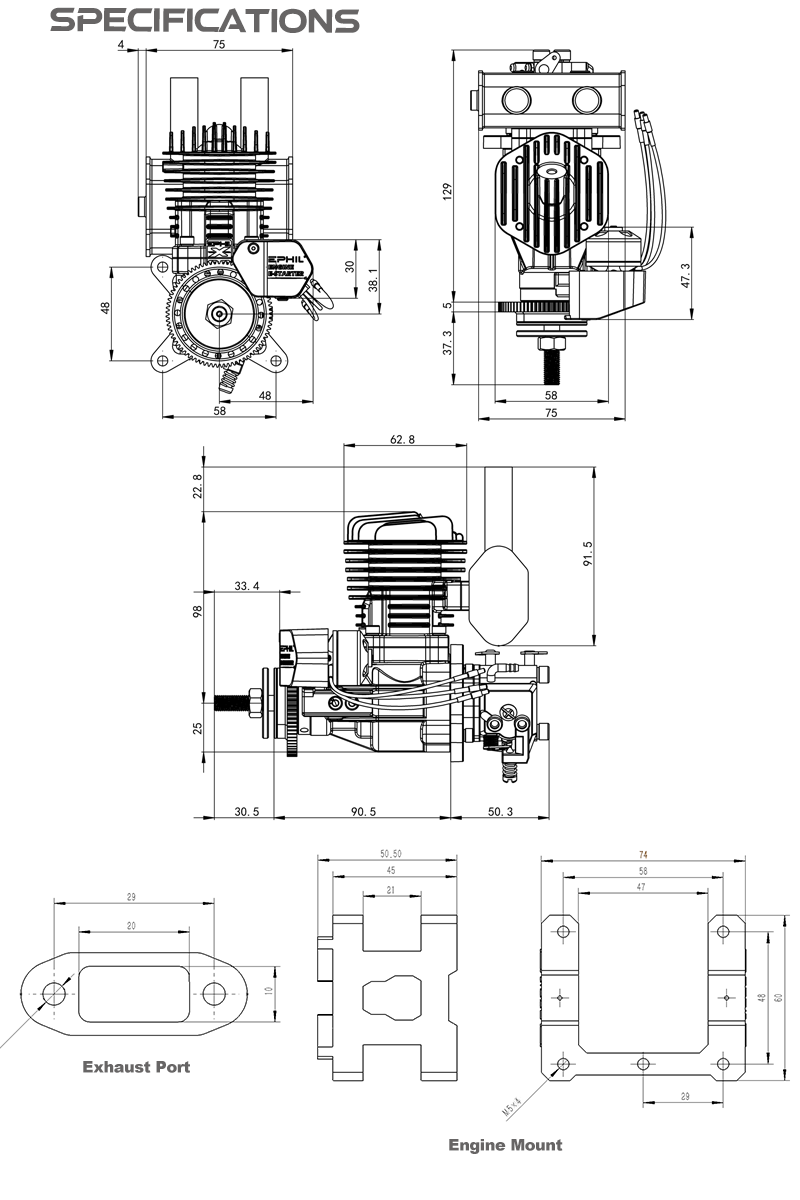

X-20cc-R PRO

Displacement: 20cc (1.22 cu in)

Performance: 2.5 HP

Speed Range: 1800-8600 RPM  (Test Propeller-16*8)

Bore: 32 mm (1.26 in)

Stroke: 27mm (1.06 in)

Static Thrust: 7.0 kg @ 100 m ALT (15.4 lb @ 328 ft ALT)

Static Thrust: 5.4 kg @ 1800 m ALT (11.9 lb @ 5900 ft ALT)

Compression ratio: 9:1

ESC Starter Manual Here


Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 16x8; 14x10; 15x8; 16x6; 17x6

Weight of Main Engine: 697g

Weight of Muffler Set: 62g

Weight of Engine Mount Set: 115g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Weight of Starter: 85g

Weight of ESC: 36g

Total Weight: 1182.5g (2.61 lb)



Dealers Welcome



Ephil

Ephil 20cc Rear Exhaust Gas Engine

with Auto Start System

$359.00









 EME35cc pitts muffler EME35CC Canister Muffler



All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
