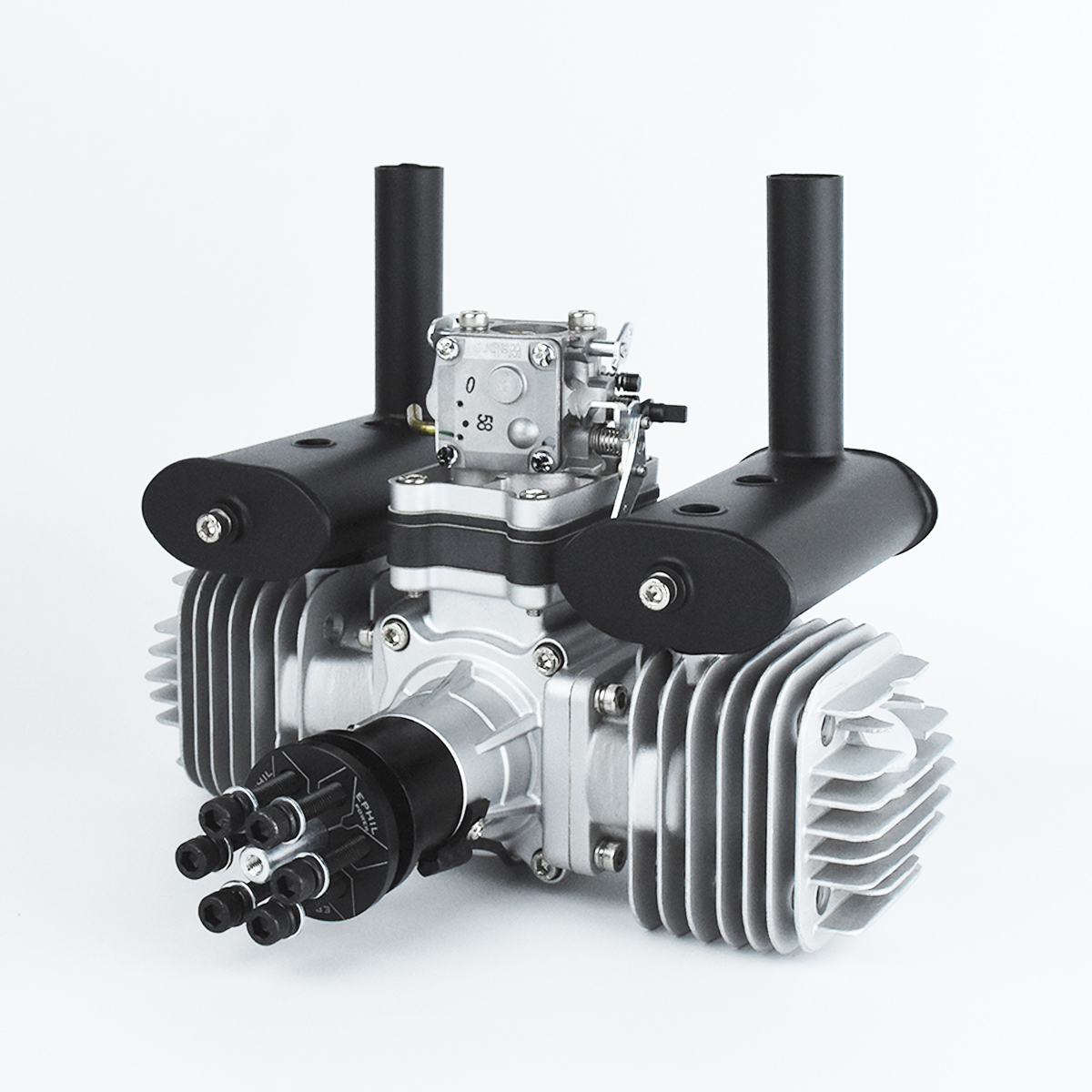

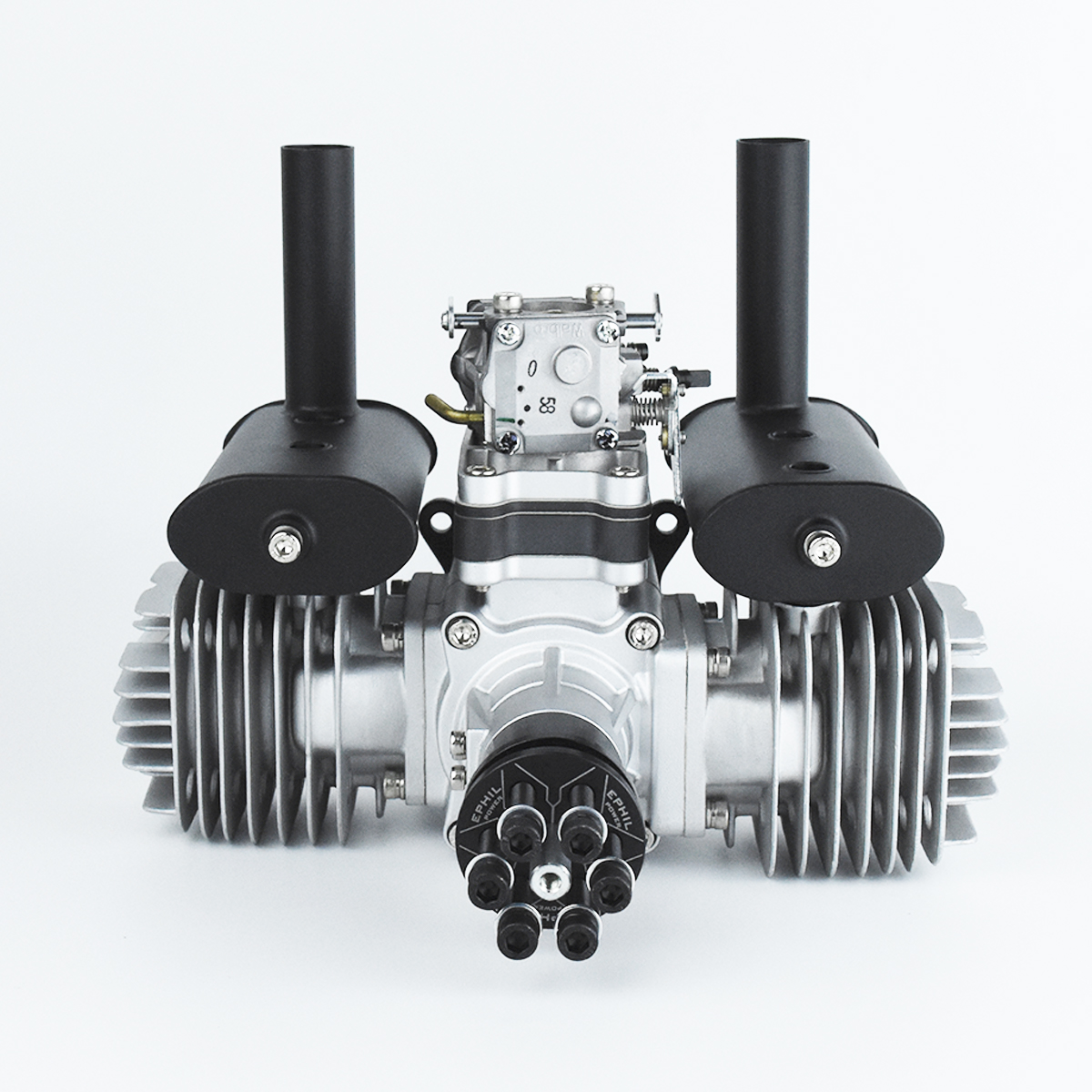

Ephil 123cc Twin Gas Engine
12
Month Manufactrer Warranty - Serviced right here in the USA.


The 123cc twin cylinder engine runs smoothly over the
entire engine speed range.
The opposed crankshaft and piston eliminate most of the unwanted
vibration during operation.
The light weight design allows the engine to have a superior
thrust-to-weight ratio compared to other engines of the same
displacement, making it very suitable for small-scale RC aircraft
and UAVs. Made and assebled with quality parts such as Walbro
Carburetor, NSK earings, even Iridium CM6 spark plugs are standard.
|
Ephil 123cc-T
Displacement: 123cc (7.5 cu in)
Performance: 12.2 HP
Speed
Range: 1500-6650 RPM (Test Propeller-27*10)
Bore: 47 mm (1.85
in)
Stroke: 35 mm (1.38 in)
Static Thrust: 26.8 kg @ 100 m
ALT (59 lb @ 328 ft ALT)
Static Thrust: 23.8 kg @ 1800 m ALT
(52.5 lb @ 5900 ft ALT)
Compression ratio: 8:1
|
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition
Voltage: 6-14 V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 26x10; 26x12; 27x10; 28x10
Weight of
Main Engine: 2516g
Weight of Muffler Set: 228g (L&R Mufflers;
Screws)
Weight of Aluminum Standoffs Set: 136g (Including
Screws)
Weight of Spark Plug: 13.5g*2 (CM6*2)
Weight of
CDI (Ignition): 173g
Total Weight: 3080g (6.79 lb) |
Dealers Welcome
Ephil 123cc Twin Gas Engine
Coming Soon
|
