Servos and Components

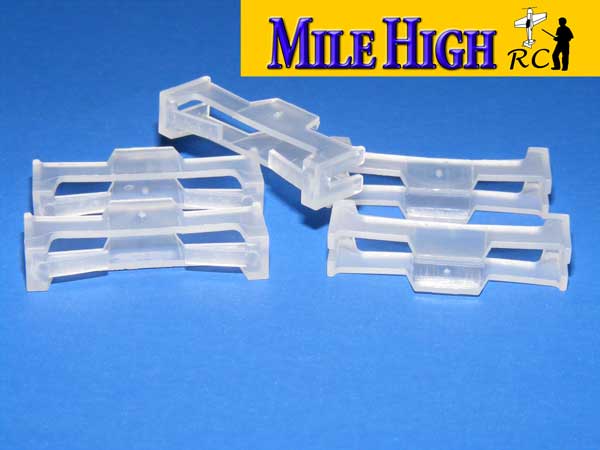

Servo Safety Clips

Pack of 5 for $2.00

Servo Power Box/expander. Up to 8 channels in = up to 16 channels out  (plus ignition) Includes Switch. Download the Manual

$74.99


Servo Extensions at the bottom of the page

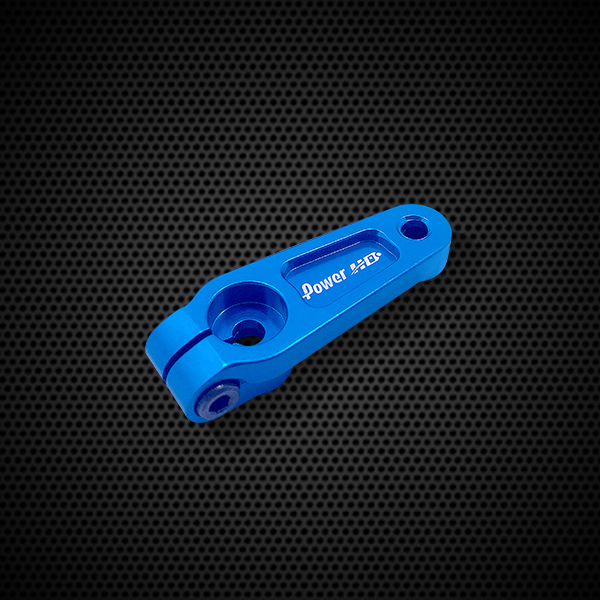

Miracle RC Heavy Duty Servo Arms

Hitec Servo ArmAluminum Servo Arm

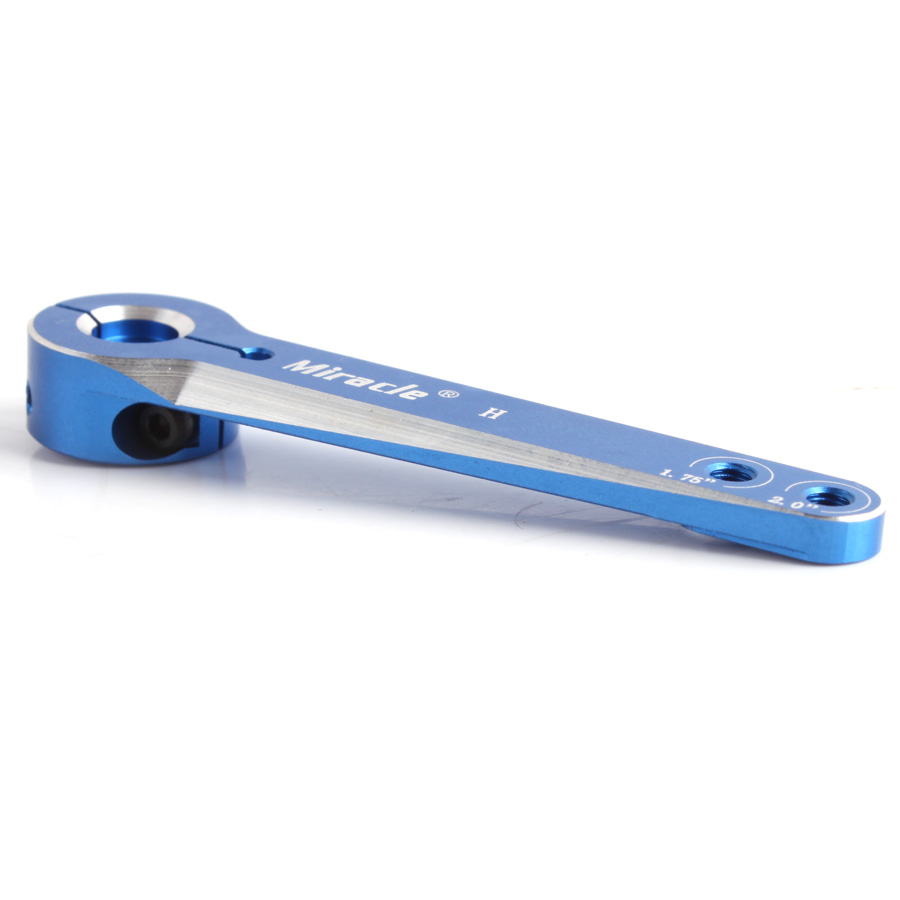

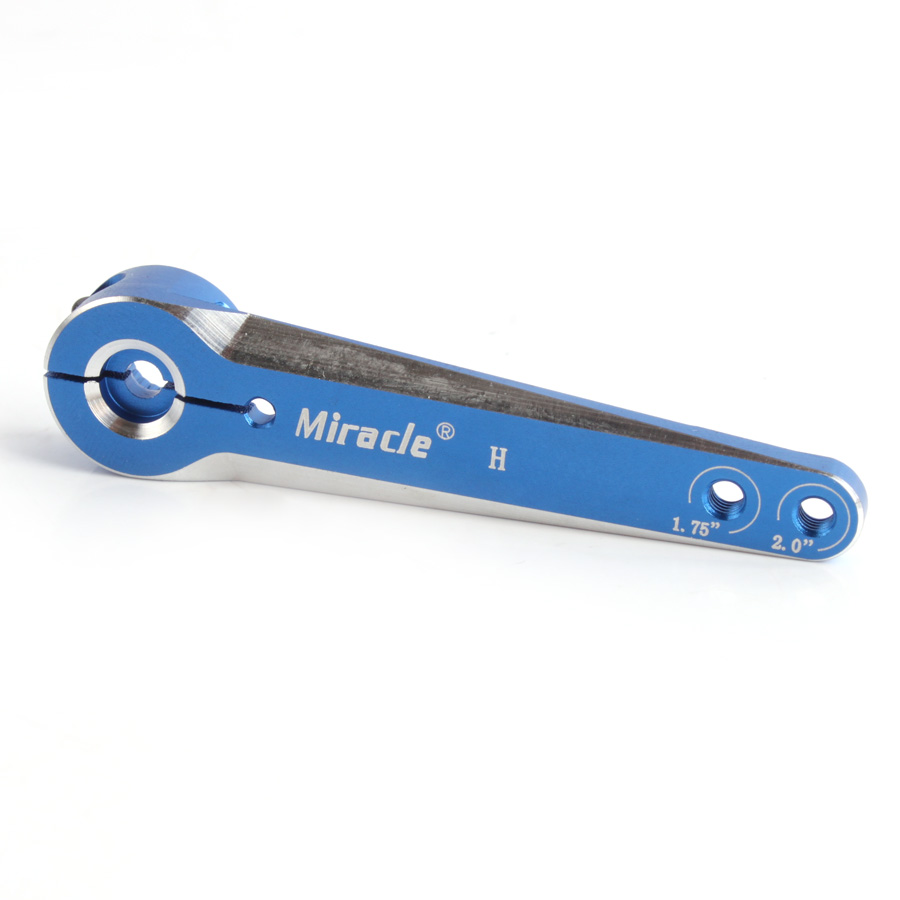

Miracle RC V3 Heavy Duty Long Servo Arm For Hitec Servos (24T). Nice CNC anodized aluminum. Super strong and light weight. With 1.75" & 2" mount holes.



Heavy duty Servo Arm (Hitec)

$12.50

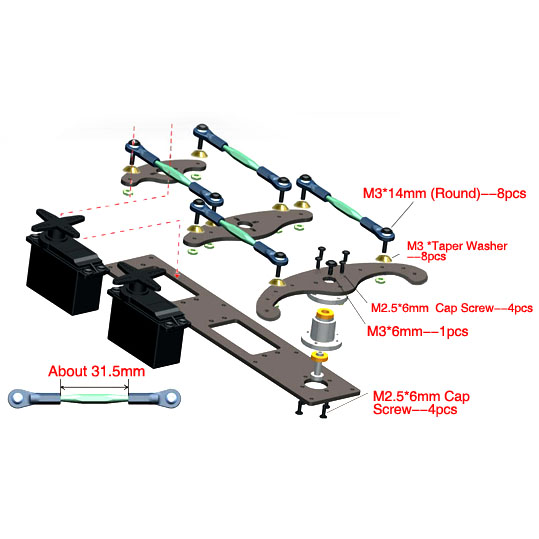

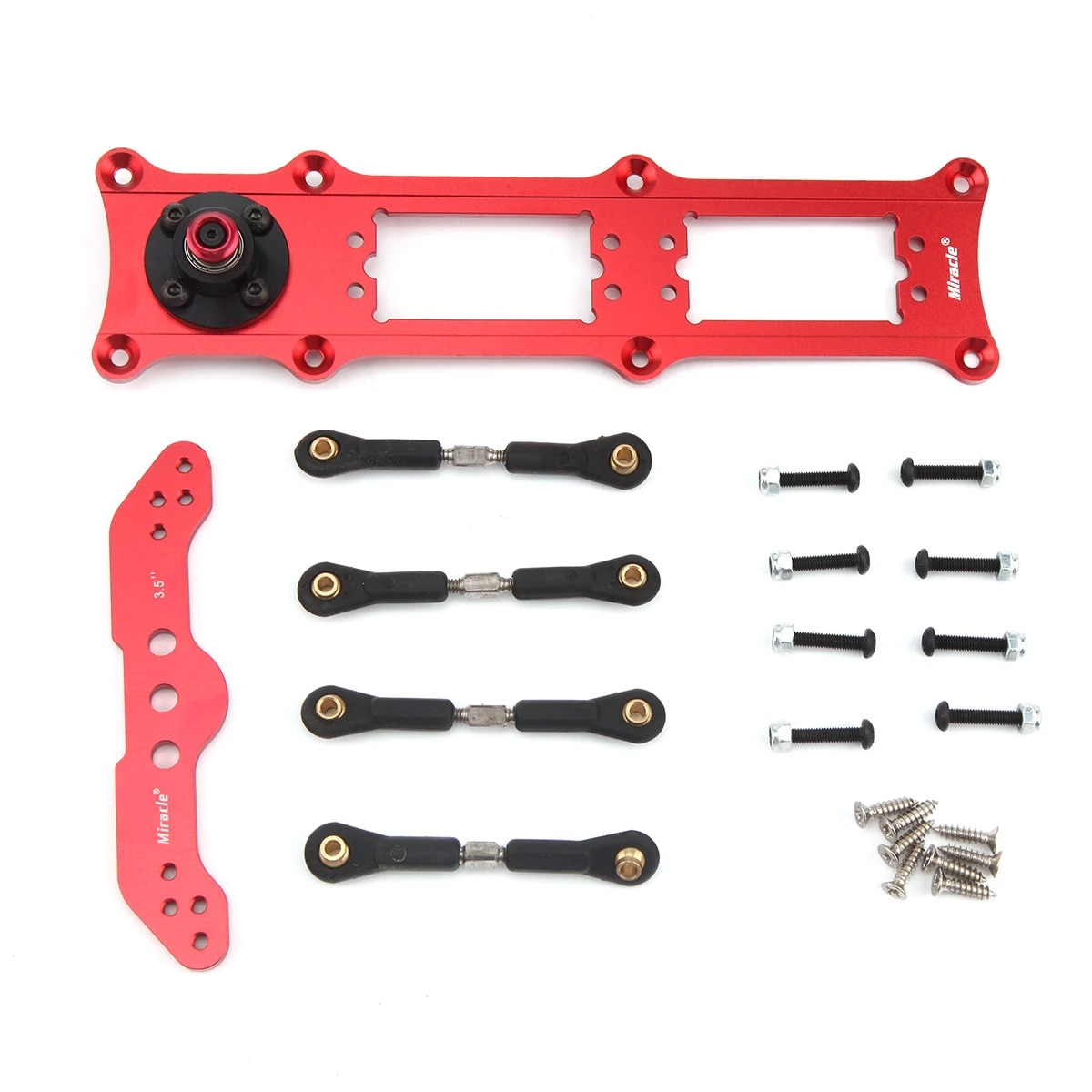

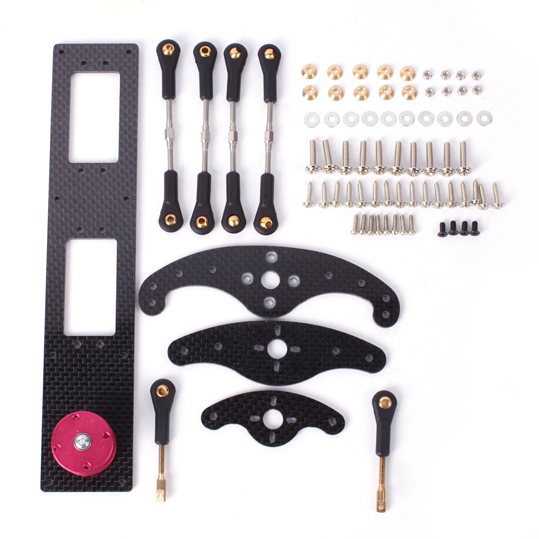

 Carbon Fiber Dual Rudder Tray

Dual Rudder TrayDual servo rudder tray

High quality dual rudder tray. Add precision and torque while taking some of the load off your servos. For use on 50CC-150CC aircraft.



Carbon fiber dual rudder tray/assist.

$46.00


Savox SC1256TG High Torque Titanium Gear Digital Servo



Savox 1256TG1256TG

Dimensions(mm): 40.3x20.2x37.2
Weight(g):52.4
Speed(@4.8V sec/60): .18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): .15
Torque(@6.0V oz-in): 277.7
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
25 Tooth Spline

Running current (at no load):  100 mA @ 4.8V
Running current (at no load):  120 mA @ 6.0V
Stall current (at locked):  4000 mA @ 4.8V
Stall current (at locked):  5000 mA @ 6.0V
Idle current (at stopped):  5 mA @ 4.8V
Idle current (at stopped):  5 mA @ 6.0V
Limit angle:  200°±10°
Connector wire gauge:  #22 AWG
Connector wire length:  250 ±5 mm
Control system:  Pulse width modification
Amplifier type:  Digital Controller
Operating Travel:  100° (when1000→2000 μsec)
Neutral position:  1500 μsec
Dead band width:  3 μsec
Rotating direction:  Counterclockwise (when1500→2000 μsec)
Pulse width range:  800→2200 μsec
Maximum travel:  Approx 130°(when900→2100 μsec)

Savox SC1256TG

Titanium Gear Digital Servo

On sale $75.00


Savox SC-1258TG Super Speed Titanium Gear Digital Servo



Savox 1258TG1258TG

Dimensions(mm):  40.3x20.2x37.2
Weight(g):  52.4
Speed(@4.8V sec/60):  .10
Torque(@4.8V oz-in):  133.3
Speed(@6.0V sec/60):  .08
Torque(@6.0V oz-in):  166.6
Gear:  Titanium & Aluminum
Bearing:  2BB
Case:  Aluminum
25 Tooth Spline
Running current (at no load):  100 mA @ 4.8V
Running current (at no load):  120 mA @ 6.0V
Stall current (at locked):  4000 mA @ 4.8V
Stall current (at locked):  5000 mA @ 6.0V
Idle current (at stopped):  5 mA @ 4.8V
Idle current (at stopped):  5 mA @ 6.0V
Limit angle:  200°±10°
Connector wire gauge:  #22 AWG
Connector wire length:  250 ±5 mm
Control system:  Pulse width modification
Amplifier type:  Digital Controller
Operating Travel:  100° (when1000→2000 μsec)
Neutral position:  1500 μsec
Dead band width:  3 μsec
Rotating direction:  Counterclockwise (when1500→2000 μsec)
Pulse width range:  800→2200 μsec
Maximum travel: Approx 130°(when900→2100 μsec)

Savox SC1258TG

Titanium Gear Digital Servo

On sale $64.00




XQ Power S4020D



Coreless Digital with Titanium Gear for High-Speed and Torque.



Weight- 2 oz (59g)

Operating Speed: 6.0V - .13 sec/60°   /   4.8 - .15 sec/60°

Torque: 6.0V: 300 oz-in (21.8 kg-cm)  /  4.8V: 250 oz-in (18.5 kg-cm)

Dimension: 40.1x20.1x36.8mm

Operating Voltage: 4.8V - 6.0V

Uses Futaba Arms



XQ Power S4020D

Digital with Titanium Gears



$40.00 Each


XQ Power S3015M

Analog with metal gears for Great-Speed and Torque.

Use this servo on 26CC-30CC 3D, Sport, and IMAC airframes.



Weight- 1.46 oz (56.0 g)

Operating Speed: 6.0V:0.18 sec/60°   /   7.2V:0.16 sec/60°

Torque: 6.0V: 202.6 oz-in (14.60 kg-cm)  /  7.2V: 217.9 oz-in (15.70 kg-cm)

Dimension: 40.8x20.1x38mm

Operating Voltage: 6.0V - 7.2V

Uses Futaba Arms

Note: 7.2V is LiFe/A123 peak voltage not 2-cell lipo safe without regulation



XQ Power S3015M

$19.00 Each

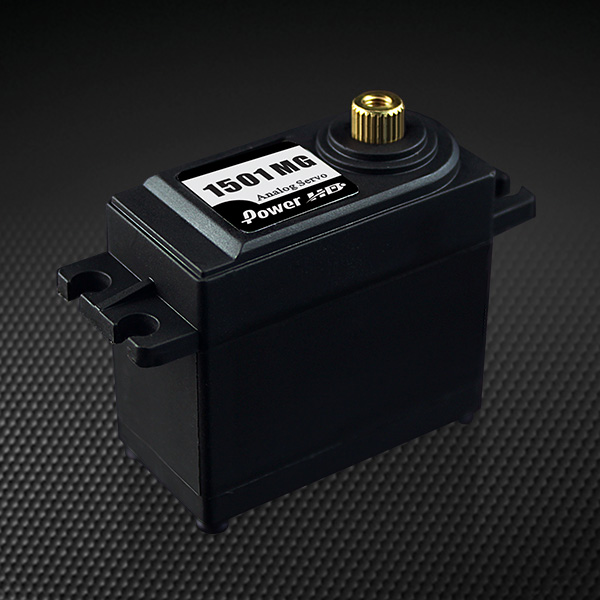

Power HD 1501 Metal Gear Analog Servo

Great Servo for 30CC size sport planes such as the 70" class ESM war birds.

Power HD 1501MG1501mgPower HD 1501mgPower HD 1501MG

Power HD servos are the some of the best servos in the world. The 1501MG is a metal-geared analog servo from Power HD that delivers extra-high torque normally associated with much more expensive or larger servos. The HD-1501MG is a great high-quality, standard-size servo that features metal gears and two ball bearings and can deliver a tremendous amount of torque for a servo this fast. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.

Torque

4.8V: 215.3 oz.-in (15.50 kg-cm)
6.0V: 236.1 oz.-in (17.00 kg-cm)
7.2V: 284.0 oz.-in (20.45 kg-cm)

Speed

4.8V: 0.16 sec/60°
6.0V: 0.14 sec/60°

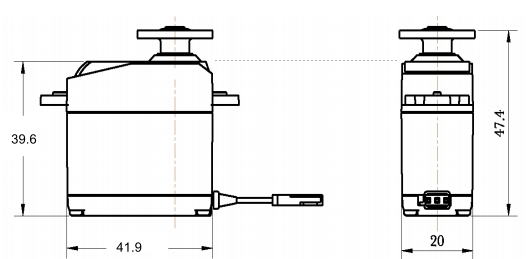

Dimensions

Length: 41.9 mm
Width: 20.6 mm
Height: 39.6 mm

Power HD 1501MG

MSRP $25.99 - Sale Price - $18.99




Power HD Coreless Digital 1214TH

Power HD 1214TH1214TH1214-TH

Modulation: Coreless Digital
Gear Type: Titanium Alloy/metal
Double Ball Bearing
Weight: 2.3oz (65g)
Size: 41x20x37mm

Torque:
7.4v - 222oz/in (16kg/cm)
6 v - 194oz/in (14kg/cm)

Speed
7.4 v - .12 sec  ~  6 v - .14sec



Power HD 1214TH

$49.00 on Sale $39.00



Flight Video    Operation Video 6V    Operation Video 7.4V    In a Buggy


Power HD Coreless Digital 1218TH

1218THHD 1218 TH1218TH Power HDPower HD 1218



Modulation: Coreless Digital
Gear Type: Titanium Alloy/metal
Double Ball Bearing
Weight: 2.3oz (65g)
Size: 41x20x37mm

Torque:
7.4v - 291oz/in (21kg/cm)
6 v - 250oz/in (18kg/cm)

Speed
7.4 v - .16 sec  ~  6 v - .18sec

Power HD 1218TH

$51.00



Out of stock

$2.00 priority shipping on all pre-orders




Power HD 1581HD



Modulation: Digital
Gear Type: Plastic
Single Bearing
Weight: .43oz (12.3g)
Size: 22.8x12x25.4mm

Torque:
4.8v - 30.6oz/in (2.2kg/cm)
6 v - 36.1oz/in (2.6kg/cm)

Speed
4.8 v - .21 sec  ~  6 v - .16sec



Power HD 1581HD Micro Digital Servo

$16.00 on Sale $11.00


Tower Pro SG90

-Dimensions: 22*11.5*27mm

-Operating Speed (4.8V no load): 0.12sec/60 degrees

-Stall Torque : 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)

-Temperature Range: -30 to +60 Degree C

-Dead Band Width: 7usec

-Operating Voltage:3.0-7.2 Volts

-TOWERPROSG-90 Micro Servo

-All Nylon Gear

-Connector Wire Length 150MM

SG90 Servo $4.20

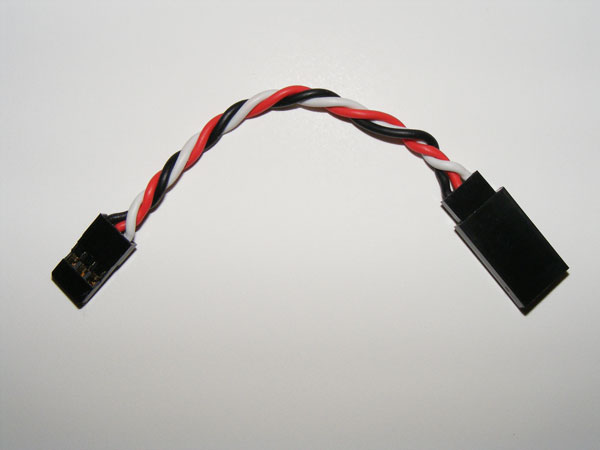

Servo Extensions and "Y" Harnesses



All our extensions and harnesses have universal plugs.



3" Heavy Duty servo extension

3" Servo Extension

3" (75mm) 22 gauge Heavy Duty Twisted Wire Servo Extension



$1.00 Each

6" HEavy Duty servo extension

6" Servo Extension

6" (150mm) 22 gauge Heavy Duty Twisted Wire Servo Extension



$1.10 Each

6" Y Extention

6" "Y" Servo Extension

6" "Y" (150mm) 22 gauge Heavy Duty Twisted Wire Servo Extension



$1.50 Each

12" servo extension

12" Servo Extension

12" (300mm) 22 gauge Heavy Duty Twisted Wire Servo Extension



$1.20 Each

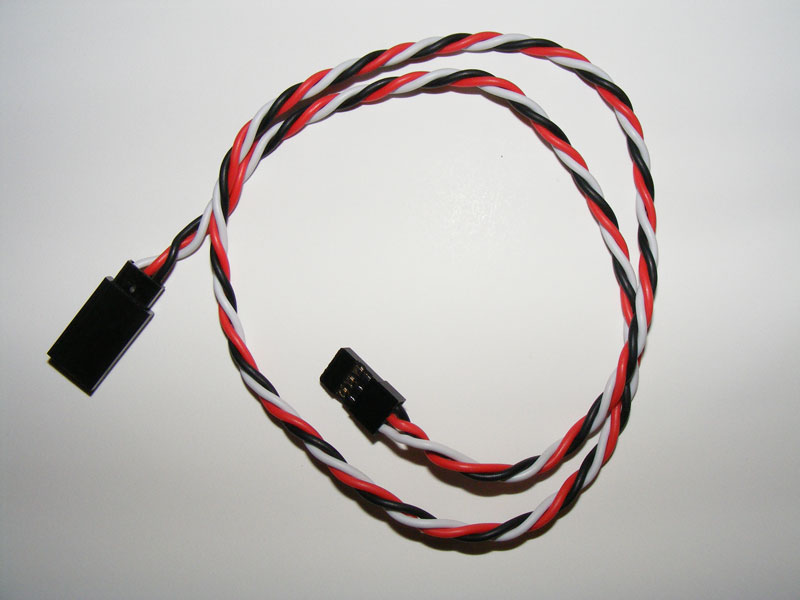

18" servo extension

18" Servo Extension

18" (450mm) 22 gauge Heavy Duty Twisted Wire Servo Extension



$1.30 Each

30" servo extension

30" Servo Extension

30" (750mm) 22 gauge Heavy Duty Twisted Wire Servo Extension



$1.60 Each

servo extension

39" Servo Extension

39" (1000mm) 22 gauge Heavy Duty Twisted Wire Servo Extension



$1.90 Each










All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
