Add Electric Start to your 30-35cc Gas Engine





DLE30 Auto StartEME Auto StarterAuto Starter 30-35ccEME Auto Starter





Specs:

Total Weight - 19oz. (560g)

480 Brushed Motor

 - Input 3-15V

 - We recommend the optional controller for ease of use.

Use on DLE30, DLE35RA, EME35.

Things you NEED to know:

Some assembly is required. It is suggested that you are comfortable working on your motors. You will need to remove your prop hub and shaft. You will also need to install a gear with a one way bearing. Basic mechanical mentality/skill is suggested. No instructions included. Grease your gears after assembly. DO NOT operate without a prop.



Add electric start to your bird. No more flipping a prop. Simply assign it to a switch and start your motor with the push of a butting/flip of a switch. Drive gear incorporates a one way bearing so power is not transferred back to the motor.





Use for: EME35, DLE30, DLE35RA.



Starter is made for the EME 35.

It also fits DLE30 and DLE 35RA, along with others with the same prop hub, mounting pattern, and crank as above.



We are currently ignoring the tons of e-mails asking if they fit any other engine. These are EME starters made specifically to fit an EME 35. They happen to fit DLE 30 and 355RA or copies/clones of.



Does not fit anything with a tapered crank such as, DA, GP, MLD. Does not fit twin anything, O.S., JC, Zenoah, 3W, 15CC, 20cc, 30cc, 34cc, 40cc, 42cc, 111cc, 120cc, 170cc, your motorized bicycle, motorized skateboard, Go-cart, weed eater, lawnmower, chainsaw, Ice Auger, etc, etc, etc..

DLE Remote Start

Auto Starter for 30-35CC

Sent in random colors No Instructions Included

$116.00 - USA Destinations

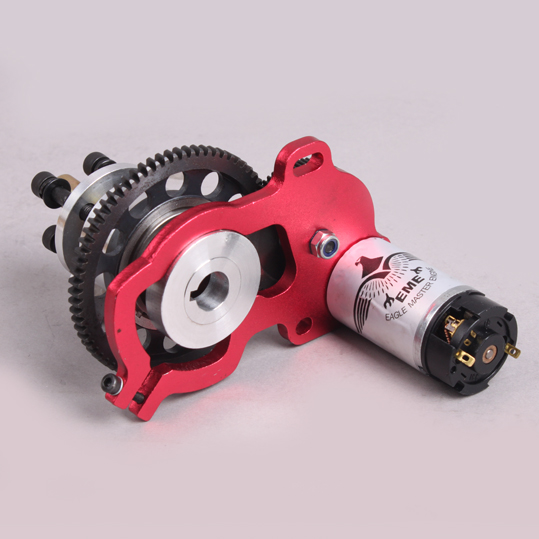

EME 30-35 Class E-Starter

US Residents save $5.00 use the drop down to add a controller with no additional shipping

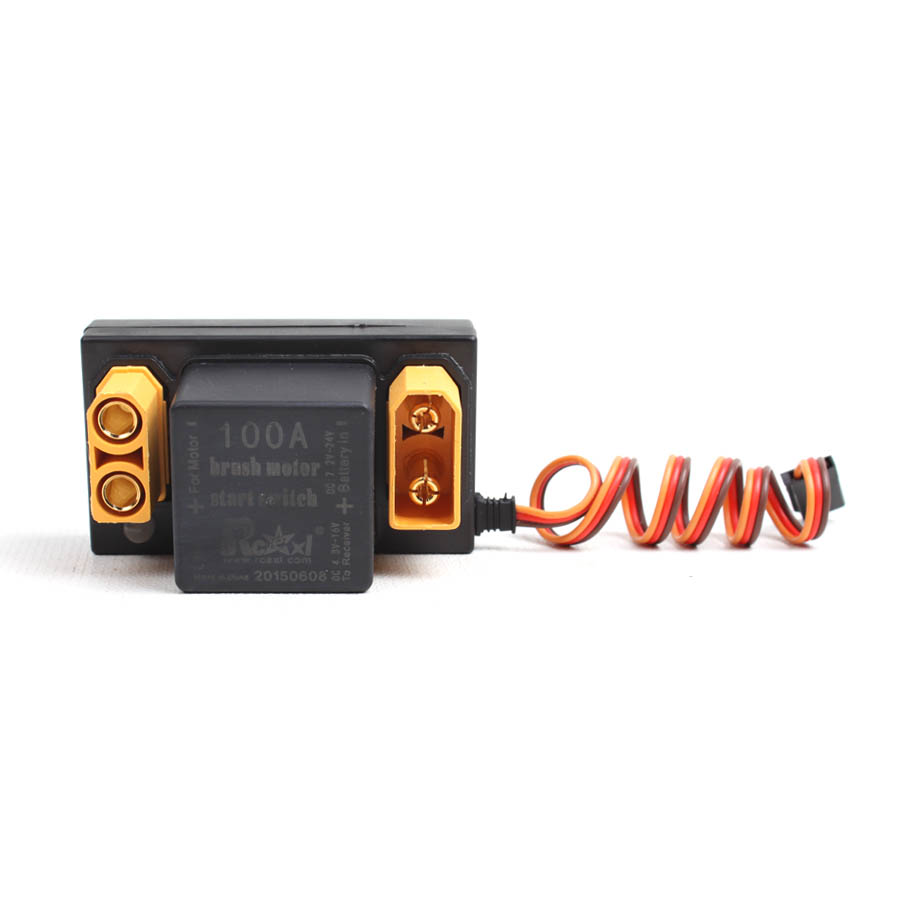

100 Amp Controller / Electric Switch for Auto Starter

Includes XT90 Plugs



46g, Pulse Width 1.2-1.4MS, 7.2 - 15V / 100Amp Max

We suggest 3-cell Lipo for power Something like the 1800 mah Found Here

No Instructions Included

$30.00



No instructions included. Grease your gears after assembly. DO NOT operate without a prop.

90 Day Warranty on entire unit - Note Warranty is void if you do not grease your gears.



Tech notes: Here is some info/suggestions based on some things we have seen or been asked about over the years of selling these starters.



The two most common concerns with the starter seem to be controller related. Most common question is the LED on the controller just blinks and starter is dead. This is a lack of signal issue, the fix is to open the end points on the channel the switch is assigned to. Some radios you will need to reverse the channel the switch is assigned to. The second most common question is the starter quits after a few seconds. This is normal, it is a safety feature built into the controller. The controller will only activate for about 2 seconds. This is so the starter and engine are not both running at the same time. But if the switch is turned on while the engine is running the controller will engage the starter again (bearings and gears are available below).



- Use a good sticky grease, wheel bearing grease is adequate. To much will make a huge mess. The idea is to add a little protection to the gear teeth so they do not chip. We have seen folks use so much grease it collects under the hall sensor and stops ignition. Use just enough to wet the gears.



- Do not use a 4 cell Lipo. The controller can handle the watts of a 4 cell but the starter motor will burn up, fairly quickly. Use a 3 cell Lipo or LiFe pack. Anything that can deliver bursts of 60 Amps.



- The magnets on the starter motor are pretty strong. They can pick up washers, screws, etc off your bench. Then once the motor is activated the debris can damage the starter motor (spares available below). So work on a clean surface and check out your work when done.



- A hammer is not a recommended tool for installing a starter. Parts are a pretty solid fit with the oneway bearing being the tightest. On DLE engines you might find a ton of lock-tight around the crank, scrape or sanding this off will help with parts fitment.



Suggested to use a 3 cell lipo, This 1800mah is a good one.



Can also be activated with 40-60Amp Brushed ESC's and servo operated switches



User Submitted video of twin DLE35RA's with Auto Start. Slick!! Thank you!!



User submitted video of the starter installed on a DLE 30 in an Ultra Stick. Thank you!!







Spare parts

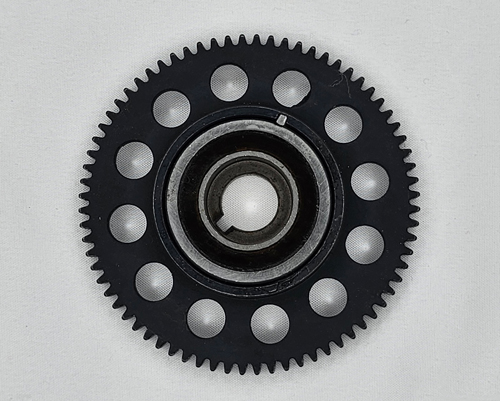

This is the gear with the one way bearing installed.

$56.00

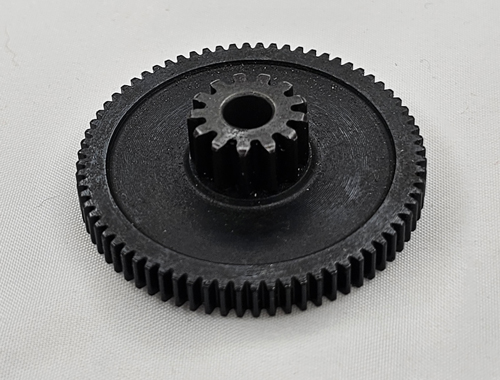

This is the gear between the motor and the one way gear

$29.00

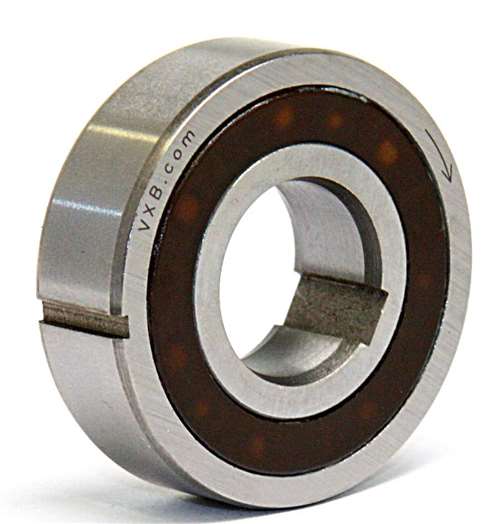

This is the one way bearing only.

$41.00

EME Auto Starter Motor

480 Brushed Motor w/Pinion

$18.50

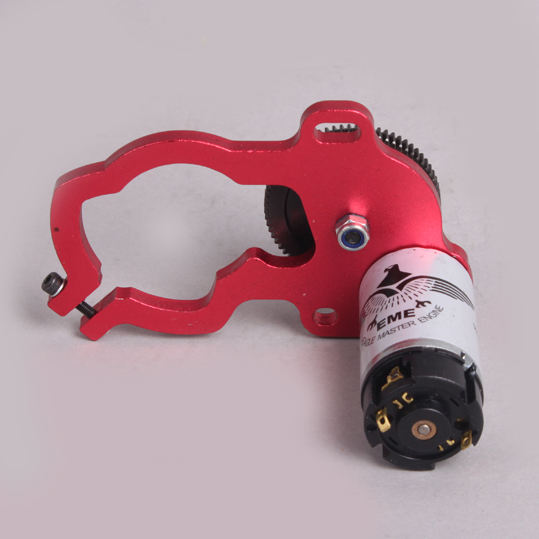

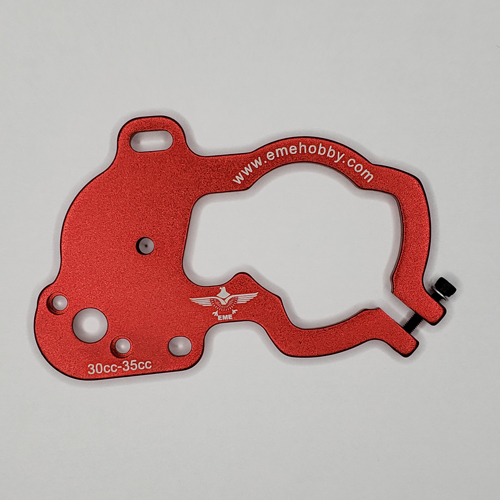

Mount Plate for 30/35 Starter

$26.00

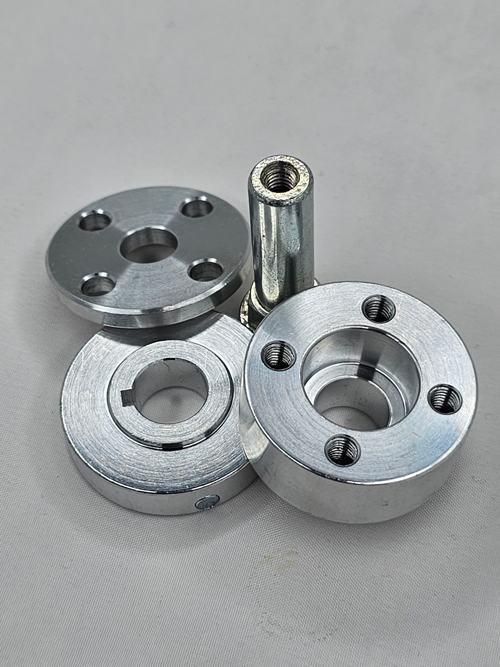

This is the 3 piece hub for the 30/35 starter (no key)

$29.00

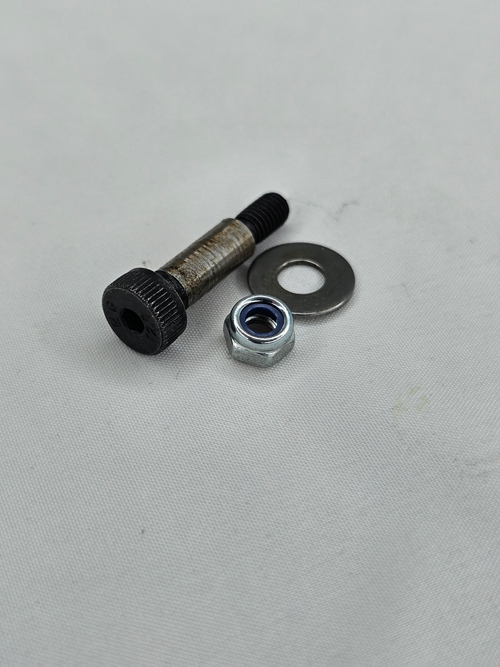

Nut and Bolt for idler gear

$5.00





Auto Starter diagram



All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
