DLE 30CC Gas Engine

V2 with rear carb



Convenience and power for quarter scale!

With the DLE-30, you get the economy of a gas engine in the size of a glow engine. Electronic ignition provides the spark for fast starting. Timing automatically adjusts for peak power throughout the rpm range. And a made-for-flight design ensures the best power-to-weight ratio for performance. A rear-mounted pumper carb ensures easier installs and smooth idling before you fly — and dependable fuel flow while you are flying.

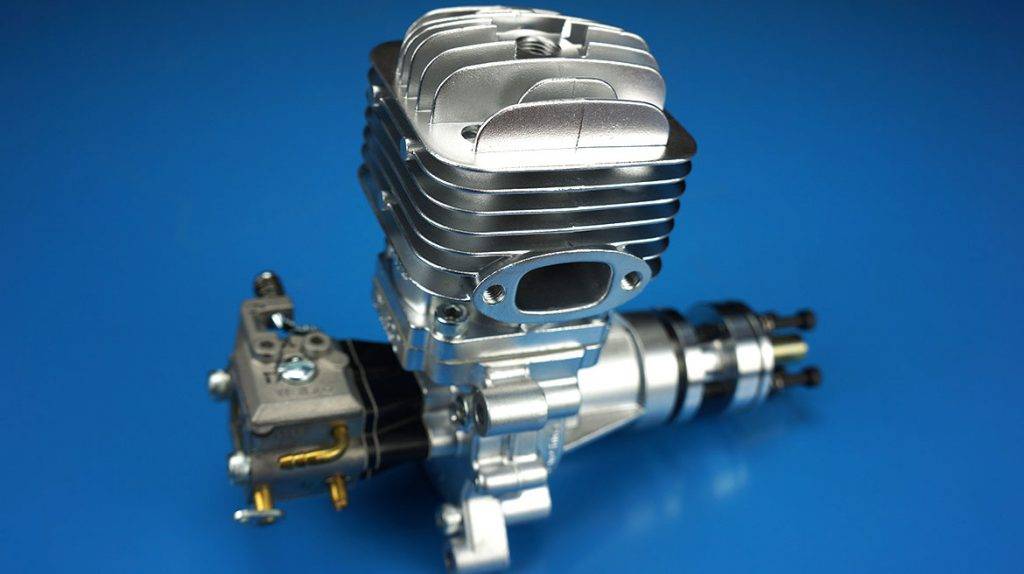

DLE 30CC Gas Motor DLE30 DLE 30 DLE30CC

DLE 30 Size DLE 30 Length

Download the Manual - Here



Convenience and power for quarter scale!

With the DLE-30, you get the economy of a gas engine in the size of a glow engine.

Electronic ignition provides the spark for fast starting. Timing automatically adjusts for peak power throughout the rpm range. And a made-for-flight design ensures the best power-to-weight ratio for performance.

A rear-mounted pumper carb ensures easier installs and smooth idling before you fly — and dependable fuel flow while you are flying.

Specifications:
Displacement: 30.5 cc (1.861 cu in)
Bore: 1.42 in (36 mm)
Stroke: 1.18 in (30 mm)
Weight: 2.4 lb (1.10 kg)
RPM Range: 1,600-8,500
Output: 3.7 hp @ 8,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 18x8, 18x10, 19x8 & 20x8
Suggested Break-in Prop: 18x8


Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.1 oz (60 g); Ignition: 4.2 oz (120g)





DLE 30CC Gas Engine

DLE 30

$285.00 Free Shipping



Mufflers For DLE30 Can be found Here



All Products are guaranteed to be free from manufactures defects and operate as stated. Please take advantage of our guarantee if you have any problems. We also like to know how our products stack up and how you like them, so after use please drop us a line with your flight impressions. The more we know the more we can help the next guy.
